02650-002 2.25 inch Mushroom Plunger with Spring Latch

02650-002 2.25 inch Mushroom Plunger with Spring Latch

SKU: 02650002 Download PDF

Now $409.49
BEFORE   Now $409.49
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The 225 inch Mushroom Plunger with Spring Latch is a hand-operated, spring latchable control circuit device, rated ‘Heavy Duty’ for use with electromagnetic equipment The yellow cover is made from die-cast zinc and painted with dry powder paint The red mushroom plastic plunger is molded from DuPont Delrin 100ST Acetal for improved impact resistance and has a solid color throughout Gold-plated contacts provide elimination of high resistance tarnishing, and a plated steel latch is included.

Features and Benefits:

    •Gold plated contacts eliminate high resistance tarnishing.

    •Plated steel latch.

    •Heavy duty ratings for electromagnetic equipment.

    •Designed for use in emergency stop applications as per IEC/EN 60947-5-5 standards.

Specifications:

 Plunger Color Red
 Cover Color Yellow
 Operating Force 10.5 lb

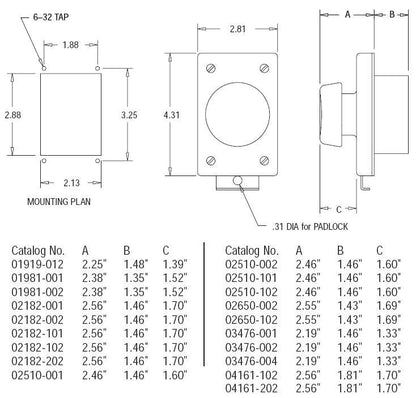

 Lock Hole Diameter 0.31 in
 Latch/Plunger Operation Latches when depressed, Operate latch to release

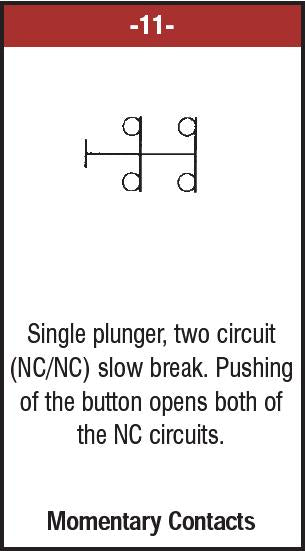

 Contact Arrangement #11 NC + NC
 Contact Type Slow-Make Slow-Break
 Approx. Shipping Weight 1.60 lb
 Old Catalog Number 2650
