0236400000 - Steel Terminal Rail 2000mm with Zinc Plating (Pack of 20)

SKU: SKU: 0236400000 Download PDF

Variant:

0236400000 - Steel Terminal Rail 2000mm with Zinc Plating (Pack of 20)

Now $216.17

~~BEFORE $0.00~~ Now $216.17

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

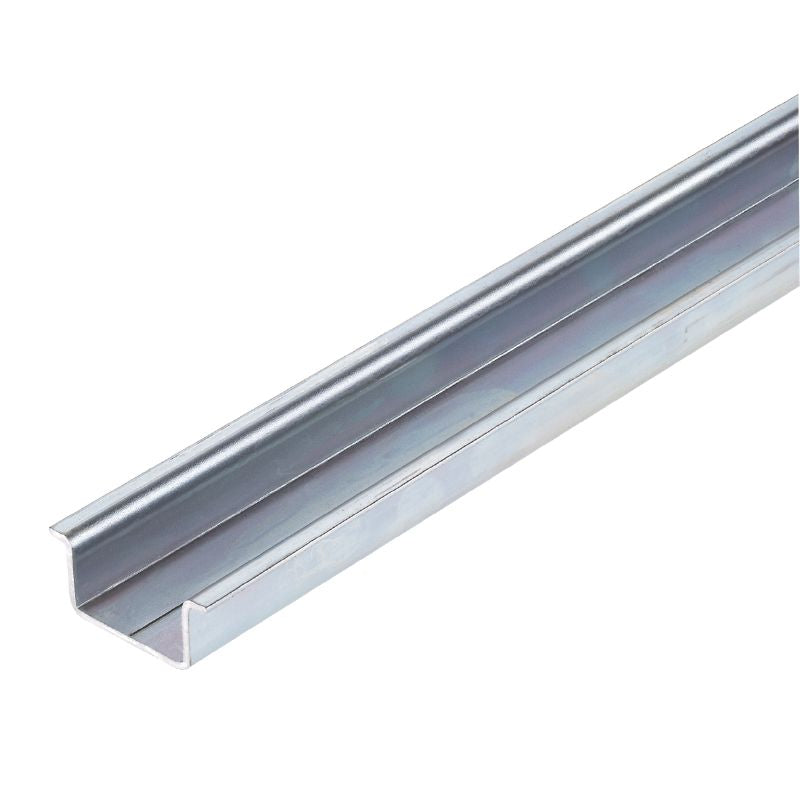

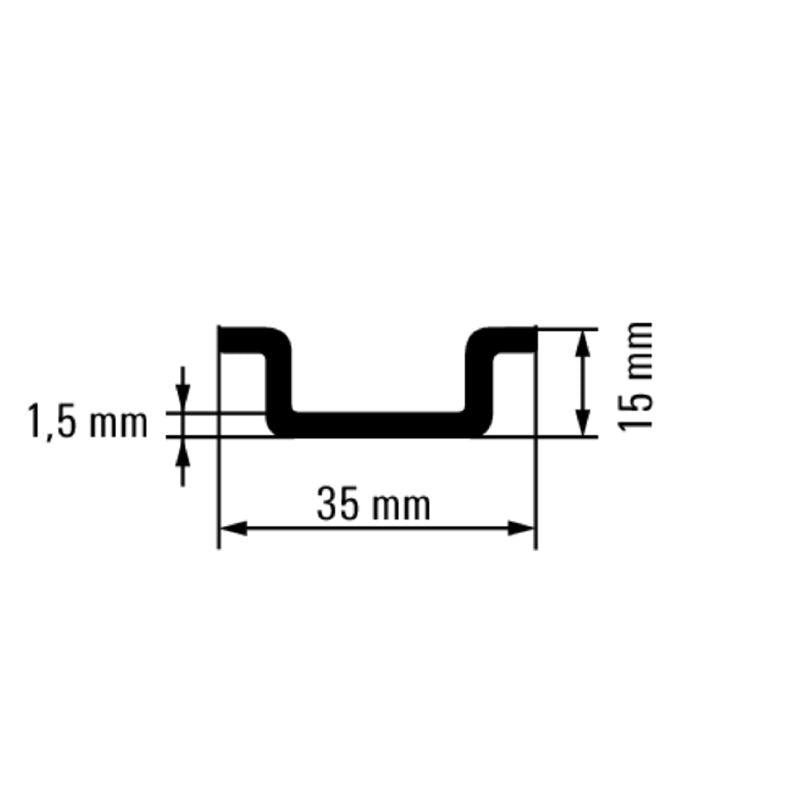

Introducing our robust terminal rail, crafted from durable steel and enhanced with galvanic zinc plating and passivation for added protection Measuring 2000 mm in width, 35 mm in height, and 15 mm in depth, this rail is both lightweight and sturdy, weighing in at 57037 grams It meets all RoHS compliance standards without any exemptions and is free from SVHC substances above 01 wt% Designed to perform efficiently in temperatures ranging from -5 °C to 40 °C, this product is ideal for a variety of applications.

Features and Benefits:

•Direct mounting installation.

•Compliant with RoHS.

•Surface finish is galvanic zinc plated and passivated.

•Short circuit strength corresponds to 35 mm² E-Cu wire.

•Short-time withstand current according to IEC 60947-7-2 is 4.2 kA.

Specifications:

Ambient temperature	-5 °C...40 °C
Basic material	Steel
Length of terminal rail	2000 mm
Short circuit strength	35 mm²
Thickness	1.5 mm
Standards	In accordance with DIN EN 60715
Surface finish	galvanic zinc plated and passivated
Slit gap	{'min': '5 mm', 'nominal': '11 mm', 'max': '2000 mm'}
Slit length	{'min': '2.3 mm', 'nominal': '25 mm', 'max': '40 mm'}
Slit width	{'min': '2.3 mm', 'nominal': '5.2 mm', 'max': '12 mm'}
Spacing of holes, centre-to-centre	0 mm
ETIM classifications	{'ETIM 6.0': 'EC001285', 'ETIM 7.0': 'EC001285', 'ETIM 8.0': 'EC001285', 'ETIM 9.0': 'EC001285', 'ETIM 10.0': 'EC001285'}
ECLASS classifications	{'ECLASS 9.0': '27-40-06-02', 'ECLASS 9.1': '27-40-06-02', 'ECLASS 10.0': '27-40-06-02', 'ECLASS 11.0': '27-40-06-02', 'ECLASS 12.0': '27-40-06-02', 'ECLASS 13.0': '27-40-06-02', 'ECLASS 14.0': '27-40-06-02', 'ECLASS 15.0': '27-40-06-02'}
