0186100000 - 2.5mm² Wire End Ferrule, 3.4mm Diameter, RoHS Compliant (Pack of 1000)
0186100000 - 2.5mm² Wire End Ferrule, 3.4mm Diameter, RoHS Compliant (Pack of 1000)
SKU: SKU: 0186100000 Download PDF
- 0186100000 - 2.5mm² Wire End Ferrule, 3.4mm Diameter, RoHS Compliant (Pack of 1000)
- 0186100000 - 2.5mm² Wire End Ferrule, 3.4mm Diameter, RoHS Compliant (Pack of 1000)
Couldn't load pickup availability
Description:
Discover the functionality of this wire end ferrule, expertly crafted without a plastic collar for enhanced reliability This standard-configured component meets RoHS compliance standards, ensuring safety and quality With a collar diameter of 34 mm, it can effectively support a conductor cross-section of 25 mm² The ferrule boasts a contact surface diameter of 22 mm and measures 12 mm in length For optimal installation, a stripping length of 12 mm is required, and it accommodates a maximum wire connection of AWG 14.
Features and Benefits:
•Compliant with RoHS regulations.
•Available in loose packaging.
•Suitable for conductor cross-section of 2.5 mm².
Specifications:

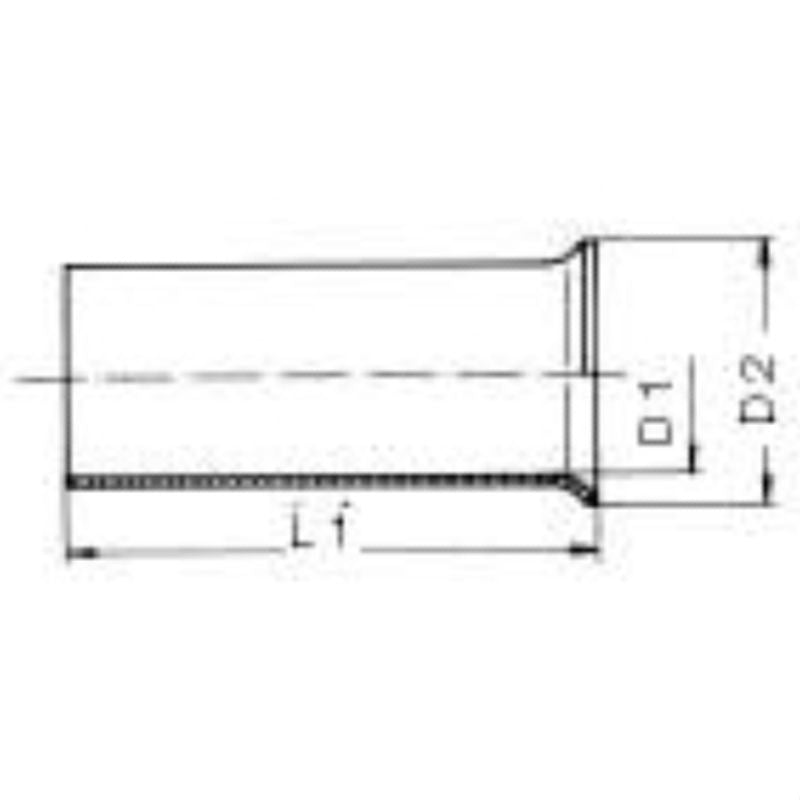

| Collar diameter (D2) | 3.4 mm |
| Conductor cross-section | 2.5 mm² |
| Contact surface diameter (D1) | 2.2 mm |
| Contact surface length (L2) | 12 mm |
| L1 in mm | 12 mm |
| Stripping length | 12 mm |
| Wire connection cross section AWG, max. | AWG 14 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
