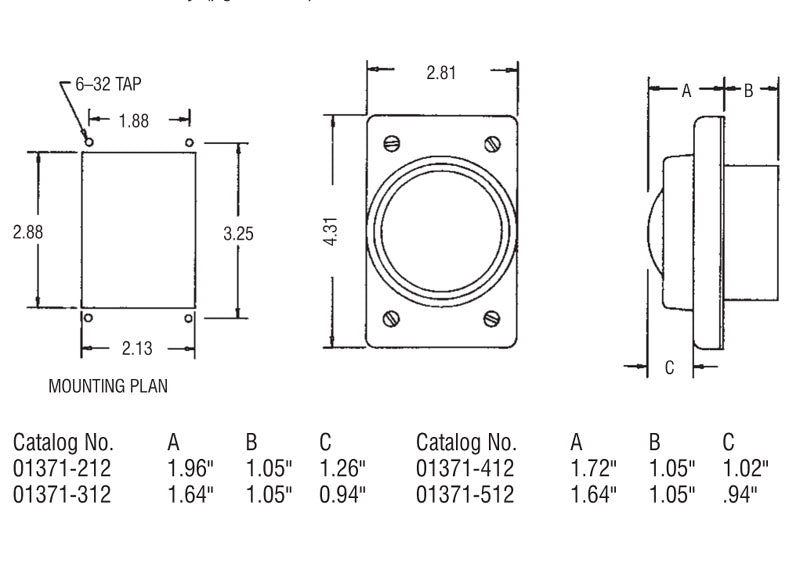

01371-512 2.25 inch Mushroom Plunger with Shield

Description:

The 225 inch Mushroom Plunger with Shield is a hand-operated control circuit device, rated 'Heavy Duty', designed for use with electromagnetic equipment This device features a yellow cover with an integral shield made from die-cast zinc, which is painted with dry powder paint The mushroom plunger head is made of chrome plated die-cast zinc It includes gold plated contacts that prevent high resistance tarnishing and has a Nema 12/13 rating with an IP 65 classification.

Features and Benefits:

•Heavy Duty rating for use with electromagnetic equipment.

•Yellow cover with integral shield made of die-cast zinc.

•Chrome plated die-cast zinc mushroom plunger head.

•Gold plated contacts eliminate high resistance tarnishing.

•Nema 12/13, IP 65 rating.

•Each captive terminal accepts (2) #14 AWG stranded wires.

Specifications:
