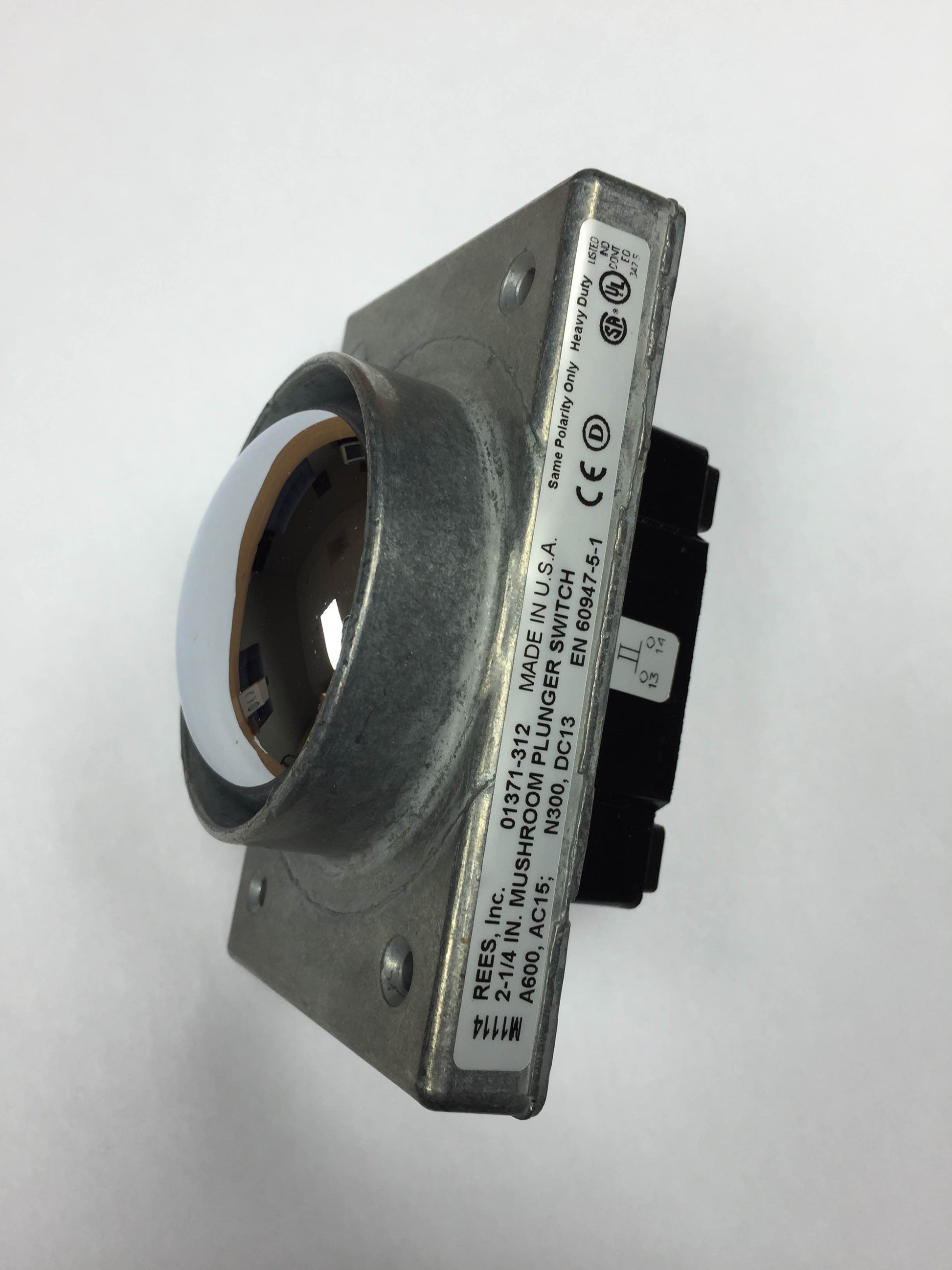

01371-312 2.25 inch Mushroom Plunger with Shield

Description:

The 225 inch Mushroom Plunger with Shield is a hand operated, control circuit device rated as "Heavy Duty" primarily intended for use with electromagnetic equipment It features a cover made from die-cast zinc with a natural sealed finish and a mushroom plunger head that is chrome plated die-cast zinc Additionally, the device includes gold plated contacts to eliminate high resistance tarnishing and is rated for Nema 12/13, IP 65.

Each captive terminal can accommodate two #14 AWG stranded wires.

Features and Benefits:

•Gold plated contacts eliminate high resistance tarnishing.

•Nema 12/13, IP 65 rating.

•Die-cast zinc cover with natural sealed finish.

•Chrome plated die-cast zinc mushroom plunger head.

•Accepts two #14 AWG stranded wires at each terminal.

•Control circuit device for heavy duty electromagnetic equipment.

Specifications:
