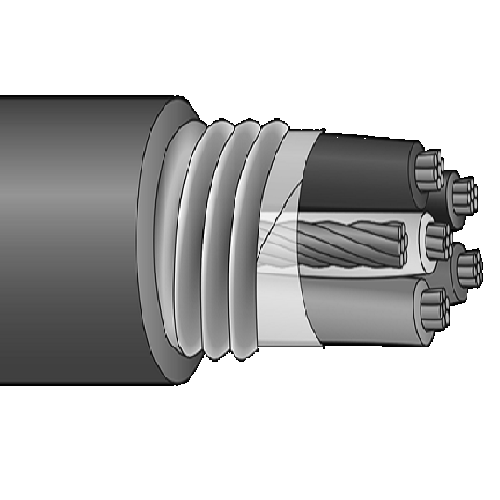

Service Wire 10,12,14 AWG Jacketed MC XHHW-2/EnviroPlus Tested Zero Halogen Limited Smoke 600V Copper Cable

Description:
This halogen free limited smoke copper cable is tough service cable. This cable has different gauge sizes ranging from 10 to 12 to 14 American wire Gauge, AWG. The outstanding feature of this cable is its MC XHHW-2 jacket which has been tested and certified for zero halogen and with limited smoke. This jacket is flame retardant and with excellent heat resistance. The cable is fitted with insulated copper conductors with proper jacketing to make sure it survives the underground environment on direct burial.

Applications:
Halogen free limited smoke copper cable shows excellent performance in hazardous, heavy duty applications. It has a tough, sturdy and robust jacket that shows very high resistance to heat and moisture, it can therefore be directly buried in underground cabling.

Its wide temperature range of -40°C to 90°C in both wet and dry locations makes it fit for marshy and punishing applications. This cable can be used in exposed cabling above the ground because of its good resistance to UV and weather. It can also serve in duties that require ampacity of up to 600V

Conductor:
• Fully Stranded Copper conductor

Insulation:
• Type MC XHHW-2 crosslinked polyethylene material.

Jacket:
• Type MC XHHW-2 jacket or EnviroPlus
• Zero lead jacket
• Halogen free material
• Has very Limited smoke

Features:
• Temperature rating of 90°C; wet and dry locations
• -40°C Temperature rating for cold locations
• Excellent sunlight resistance
• Suitable for direct burial
• Two-firewall
• Halogen free jacket

Standards:
• UL 15581
• UL 1685
• UL 1569
• IEEE 383 Flame test, 70000 BTU
• IEEE 1202
• NEMA WC-70
• ICEA S-95-658
• CSA FT-4
• RoHS compliant

grounding conductor (awg) number of conductors ampacity* (30°c ambient)
90°c wet/dry
service wire
part number
Action
#14 awg
14 2 25† AANH14/2 Request A Quote
14 3 25† AANH14/3 Request A Quote
14 4 20† AANH14/4 Request A Quote
14 5 20† AANH14/5 Request A Quote
14 7 17† AANH14/7 Request A Quote
14 9 17† AANH14/9 Request A Quote
14 12 12 AANH14/12 Request A Quote
14 19 12 AANH14/19 Request A Quote
14 37 10 AANH14/37 Request A Quote
#12 awg
12 2 30† AANH12/2 Request A Quote
12 3 30† AANH12/3 Request A Quote
12 4 24† AANH12/4 Request A Quote
12 5 24† AANH12/5 Request A Quote
12 7 21† AANH12/7 Request A Quote
12 9 21† AANH12/9 Request A Quote
12 12 15 AANH12/12 Request A Quote
12 19 15 AANH12/19 Request A Quote
12 37 12 AANH12/37 Request A Quote
#10 awg
10 2 40† AANH10/2 Request A Quote
10 3 40† AANH10/3 Request A Quote
10 4 32† AANH10/4 Request A Quote
10 5 32† AANH10/5 Request A Quote
10 7 28 AANH10/7 Request A Quote
10 9 28 AANH10/9 Request A Quote
10 12 20 AANH10/12 Request A Quote
10 19 20 AANH10/19 Request A Quote
10 37 16 AANH10/37 Request A Quote
