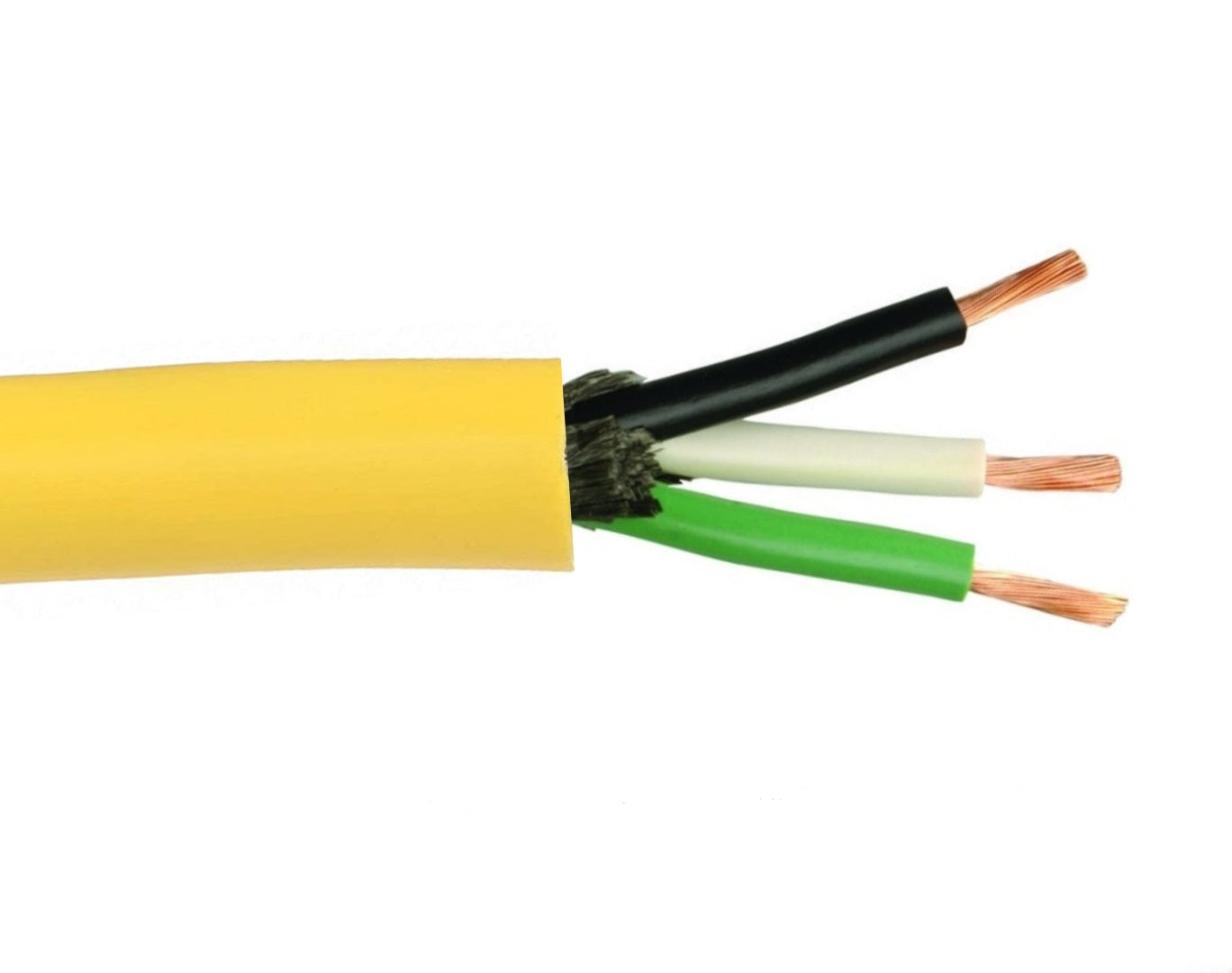

16/3 SOOW Yellow Portable Cord 600V UL-CSA

16/3 SOOW Yellow Portable Cord 600V UL-CSA

SKU: NES0498X   Download PDF

Select a gauge:
  • 16/3 SOOW Yellow Portable Cord 600V UL-CSA
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $1.09 /FT   Web pricing policy
BEFORE   Now $1.09 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

16/3 SOOW Yellow Portable Cord 600V UL-CSA

Allowable Ampacity For 16/3 SOOW Yellow Portable Cord 600V UL-CSA: 13 Amps

Also Known As:

16/3 SOOW Portable Power Cable, 16/3 SOOW, 16/3 SOOW Power Cord, 16/3 SOOW Portable Cord, 16/3 SOOW Service Cord, 16/3 SOOW Service Cable, 16/3 SOOW Cord, 16/3 SOOW Cable, 16/3 SOOW Wire, 16/3 SOOW Flexible Power Cable, 16/3 SO Cord, 16/3 SOOW Yellow.

Construction:

Conductor:

Stranded, bare, and fully annealed copper conductor, Class K per ASTM B174. Suitable for harsh conditions. The gauge is between 18 and 2.

Insulation:

Flexible Ethylene Propylene Diene Monomer EPDM insulation resists fire, abrasion, oil, mechanical impact, sunlight, ozone, air, water, acids, alkalis, and weather.

Jacket:

Yellow Chlorinated Polyethylene CPE is a thermoplastic polymer jacket that has superior resistance to chemicals and flames. The jacket is impressively flexible and durable

Resources
Applications
SOOW is water and weather-resistant service cable with an oil-resistant jacket and insulation. It is a reputable low-cost portable power cable that offers superior resistance to abrasion. The cable famously stays intact when in contact with a hot surface, making it perfect for tough applications, including compressors, industrial machinery, push-button remotes, industrial control systems, and water purification systems. SO is commonly used in mills, marinas, mines, ,industrial, commercial and residential facilities. The cable exhibits premium flexibility and is resistant to chemicals, oil, water, sunlight, and air. The voltage rating is set at 600. The temperature range is -40°C to 90°C. SOOW maintains its flexibility in both hot and cold applications.
Features
Standards:
• UL 62
• CSA C22.2 No. 49
• Flame test meets FT2, and MSHA
• VW-1
Specifications
Specification:
• Size: 16 AWG
• No. of Conductors: 3
• Conductor Stranding (No./AWG): 26/30
• Nominal Insulation Thickness: 0.030 Inches
• Nominal Jacket Thickness: 0.060 Inches
• Nominal Overall Diameter: 0.390 Inches
• New Weight lbs/kft: 90 Lbs
• Ampacity** 30°C Ambient: 13
