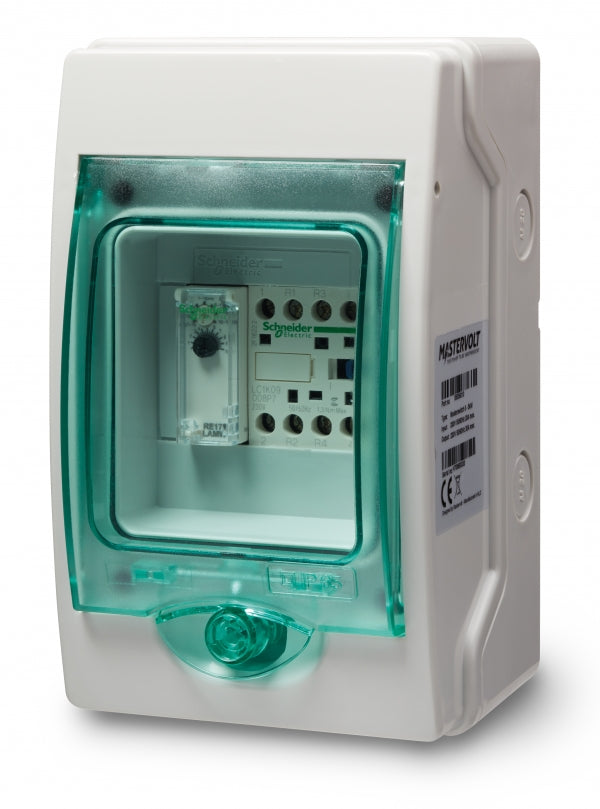

Masterswitch 5 kW (230 V)

Masterswitch 5 kW (230 V)

SKU: 55006010 Download PDF

Now $36,435.00
BEFORE   Now $36,435.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

Masterswitch 5 kW is designed for seamless automatic switching between two AC inputs, such as grid power and generator It provides one outlet to the AC power group and can handle power transfer up to 25 kW with input/output current ranging from 20 to 125 A The product features a version that includes circuit breakers for enhanced safety and functionality.

Features and Benefits:

    •Automatic switching between two AC inputs.

    •Power transfer capability of up to 25 kW.

    •Handles input/output current from 20 to 125 A.

    •Fuses version includes circuit breakers for safety.

Specifications:

 Nominal input voltage 230 V (50/60 Hz)
 Input voltage range 200-250 V
 Number of inputs 2
 Number of outputs 1
 Dimensions, hxwxd 200 x 110 x 115 mm (7.9 x 4.3 x 4.5 inch)
 Nominal input current generator 20 A
 Nominal input current grid 20 A
 Time delay generator input 0-10 sec (adjustable)
 Nominal current power output 20 A
 Power consumption (AC all inputs) 7 W
 Transfer time switch on 12-22 ms / switch off 4-19 ms
 Temperature range (specified) -5 °C to 60 °C
 Temperature range (ambient temp.) -25 °C to 70 °C
 Temperature range (storage/non operating) -60 °C to 80 °C
 Relative humidity max. 95%, non condensing
 Cable size 0.5-10 mm²/AWG 20-7
 Protection degree IP55
