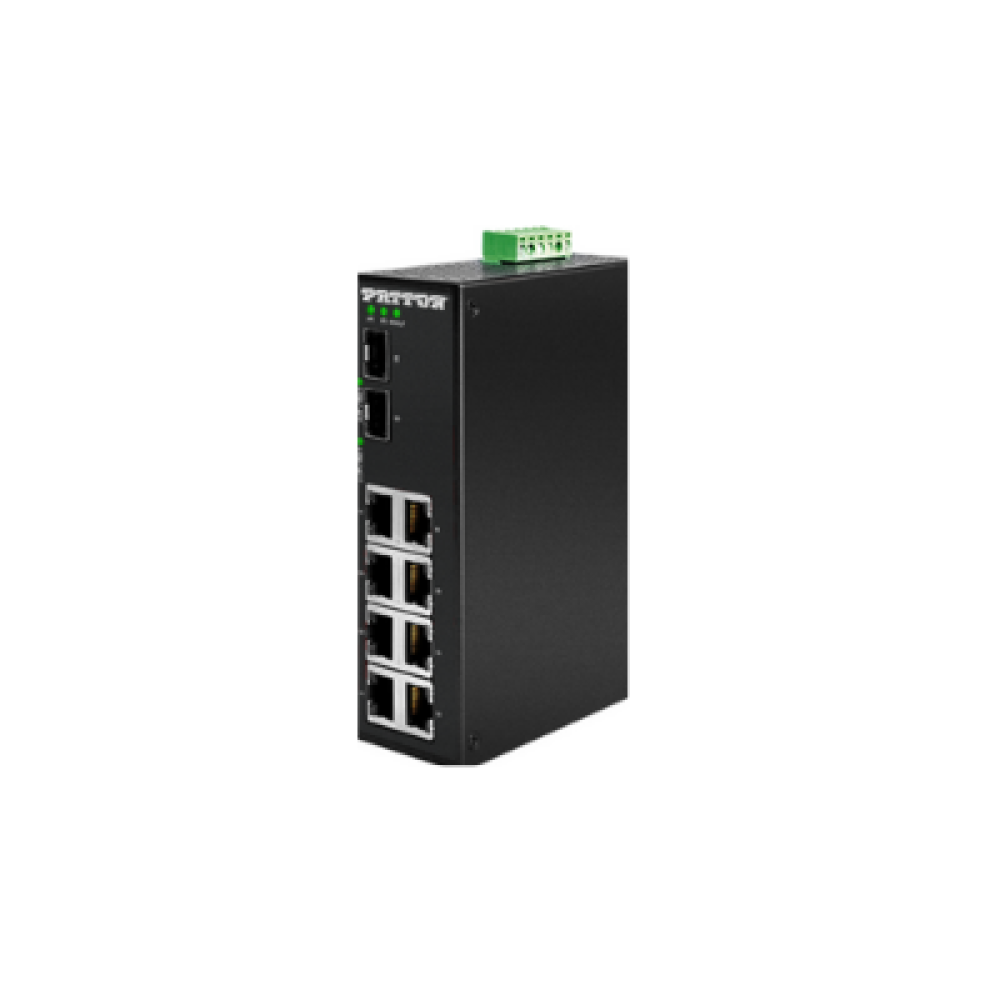

FP2008E/2SFP/8AT/48DC - Industrial PoE+ Ethernet Switch with 8 Ports and Web Management

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Patton FP2008E/AT Layer 2 Ethernet Switch, a robust solution for industrial networking needs This switch features a user-friendly web management console for effortless operation Specifically crafted for high-bandwidth and high-density applications, it is securely housed in a durable IP30-rated DIN-rail enclosure Equipped with 8 RJ45 ports that support 10/100/1000 Mbps Ethernet connections, it can deliver up to 30W of PoE+ to powered devices.

Additionally, it includes two Gigabit SFP+ slots for seamless fiber trunk integration Built to withstand tough environmental conditions, this switch offers EFT and ESD protection against voltage surges and harsh transients, with an operating temperature tolerance ranging from -40 to 167°F (-40 to 75°C).

Features and Benefits:

•8 x RJ45 10/100/1000 (PSE: 30W/port) auto MDI/MDI-X.

•2 x GigE SFP cages.

•Operating temperature range: -40 to 167°F (-40 to 75°C).

•Metal construction with IP30 protection.

•DIN-Rail Mounting with wall mounting bracket included.

•Certifications include FCC, CE, UL 61010-1, UL 61010-2-201 Class 1 Div 2.

Specifications:
