350-4 W/GRND MC

350-4 W/GRND MC

350-4 W/GRND MC

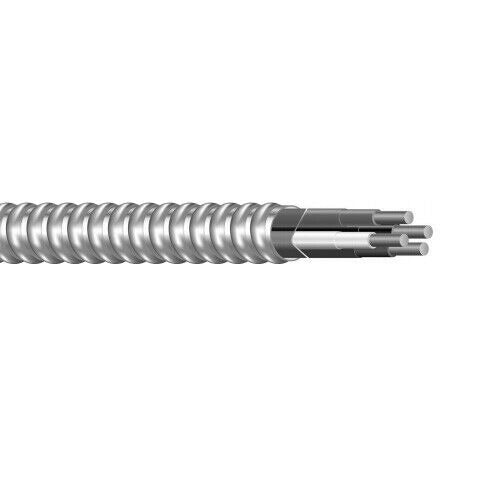

The 350-4 W/GRND MC Cable combines versatile THHN/THWN approved conductor with aluminum interlocked armor.  THHN copper conductors are Thermoplastic High Heat-resistant Nylon coated.  The acronym mainly refers to the nylon insulation that protects the cable from high heat and corrosion.  With the added THWN approval, the cable is also deemed as water resistant.  The assembly includes an insulated copper stranded grounding conductor to ensure steady conductivity over the life of the cable.  The assembly of conductors is cabled together and wrapped in binder tape to sit firmly in place.  The assembly is then encased in an aluminum interlocked armor that protects the conductors from being jarred or interfered with by outside objects.

The 350-4 W/GRND MC cable is a wide-diameter cable designed for installation in branch, feeder, and service power distribution where high carrying capacity is required.  The cable can be used in residential, multi-residential, institutional, industrial, and commercial buildings.  It is most often used for control, power, lighting, and signal circuits.  The cable is usually installed in cable tray or approved raceways but can also be fished or embedded in plaster.  The cable is approved for use in hazardous locations as specified by NEC.  The cable has a maximum conductor temperature for continuous operation at 90°C and can safely transmit ampacities up to 600 volts.

APPLICATIONS
Southwire Armorlite ® is suitable for use as follows:

  • Feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings.
  • Power, lighting, control, and signal circuits.
  • Fished or embedded in plaster.
  • Concealed or exposed installations.
  • Environmental air-handling spaces per NEC 300.22 (C).
  • Places of Assembly per NEC 518.4 and theaters per NEC 520.5.
  • Installation in cable tray and approved raceways.
  • Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2).
  • Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.

CONSTRUCTION
Southwire Armorlite ® Type MC Cable is constructed with soft-drawn copper, Type THHN/THWN-2 conductors rated 90°C dry, and a bare copper grounding conductor for sizes 1/0 AWG and larger. The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly. Standard PVC Jacket will not meet "Limited Smoke or LS Rating". Optional SOLONON Jacket can be provided for "LS" Rating

Technical Specifications:
Phase Conductor Size AWG: 350-4
Base Neutral Messenger Size AWG: 3 Bare
Diameter Steel Core (Inches): 2.162
Weight Per 1000ft Total (Lbs.): 5247
Allowable Ampacity 75C (Amps): 310
Allowable Ampacity 90C (Amps): 350
