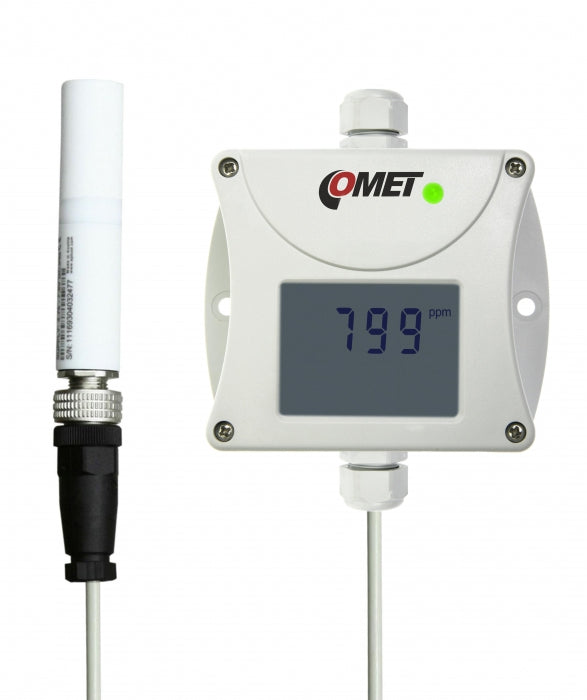

CO2 Concentration Transmitter with External Probe - 1m Cable

CO2 Concentration Transmitter with External Probe - 1m Cable

SKU: T5141 Download PDF

Now $2,231.25
BEFORE   Now $2,231.25
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The CO2 concentration transmitter is designed to measure carbon dioxide levels with a 4-20mA output, featuring an external CO2 probe and a 1m cable It is housed in a robust watertight case, delivering a user-adjustable output range The device includes a large dual-line LCD, which can be turned off when not in use, providing ease of operation The transmitter also indicates CO2 concentrations visually with color-coded LED lights: green for 0 to 1000 ppm, yellow for 1001 to 1200 ppm, and red for concentrations exceeding 1200 ppm.

Features and Benefits:

    •User-adjustable output range via PC.

    •Large dual-line LCD display that can be switched off.

    •Watertight housing for durability.

    •Visual CO2 concentration indicators with color-coded LEDs.

Specifications:

 Measured value: CO2
 Measuring range: 0 to 10,000 ppm
 Accuracy: ±(100ppm +5% from reading) at 25°C and 1013hPa
 Resolution: 1 ppm
 Operating temperature: -30 to +80 °C
 Channels: 1x external CO2 sensor
 Output: 4-20 mA
 Configuration of output: user adjustable from PC; measured range + value
 Power: 9-30 Vdc
 Protection class: IP65
 Dimensions: 88.5 x 94 x 39.5 mm
 External probe cable length: 1 meter (optionally 2 or 4 meters)
 Warranty: 3 years
