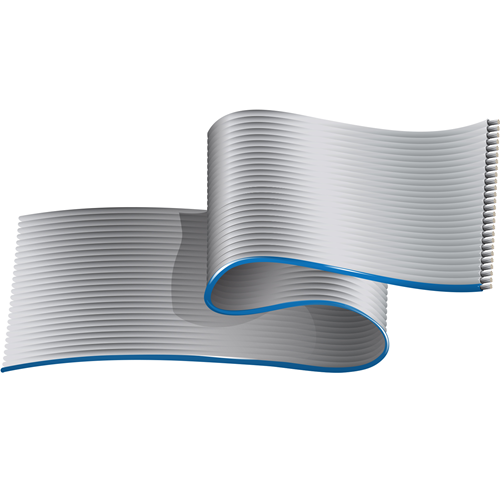

Belden 9L30050 30 AWG 50 Conductor 7x38 Stranding 0.025 in Pitch 150V Flat Gray Ribbon Cable

Description:

Miniaturized Flat Gray Ribbon Cable 0.025" Pitch, 9L300XX Series, 50 Conductor, 30 AWG (7x38) Tinned Copper, PVC Insulation.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nominal Wall Thickness: 0.008 in

Construction and Dimensions:

• Conductor Spacing: 0.025 +/- 0.002 in
• Conductor Spacing Center-Center Outside: 1.225 +/- 0.007 in
• OuterJacket1, Nominal Width: 1.250 +/- 0.007 in
• OuterJacket1, Nom Thick Flat Section: 0.027 in

Conductor DCR:

• Nominal Conductor DCR: 108 Ohm/1000ft

Standards:

• Voltage Rating: 150 V
• Dielectric Withstand Voltage: 2000 V
• Operating Temperature: -40°C to +105°C

Applications:

• Internal interconnection, internal wiring of electronic equipment, higher signal density, design flexibility, reliable mass-termination to standard IDC connectors

Specifications:

• Size (AWG): 30
• No. of Conductor: 50
• Stranding: 7x38
• Conductor Material: TC - Tinned Copper
• Part Number: 9L30050
