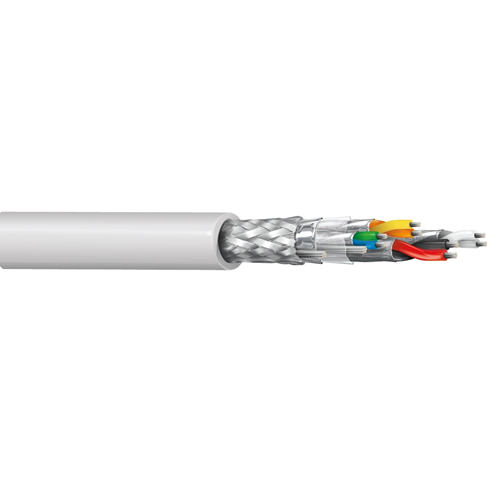

Belden 9903 28 AWG 3 Pair 24 AWG 1 Pair Tinned Copper 300V Transceiver Cable

Description:

IEEE 802.3 Ethernet Transceiver 10BASE5, 28 and 24 AWG stranded tinned copper conductors, polypropylene insulation, #28-3, #24-1 twisted pairs, overall polyester isolation tape + Duofoil + tinned copper braid shield (92% coverage), drain wire, light gray PVC jacket.

Insulation

• Material: PP - Polypropylene
• Nom. Insulation Diameter: 0.044 in (1.1 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Shield:

• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 90%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.25 in (6.4 mm)
• Separator: Polyester Tape

Standards:

• Operating Temperature: -20°C To +80°C
• Nom. Characteristic Impedance: 78 Ohms
• Voltage Rating: 30 V (AWM 2919), 300 V (CMG)

Applications:

• IEEE 802.3 Transceiver Cable.

Specifications:

Element: Pair(s):-
• Size (AWG): 28
• No. of Pair: 3
• Stranding: 7x36
• Conductor Material: TC - Tinned Copper

Element: Pair(s):
• Size (AWG): 24
• No. of Pair: 1
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 9903
