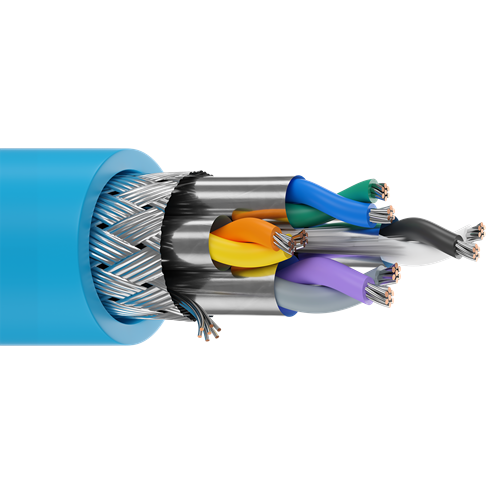

Belden 9891 22 AWG 3 Pair 20 AWG 1 Pair Tinned Copper 300V Transceiver Cable

Description:

IEEE 802.3 Ethernet Transceiver 10BASE5, 20 and 22 AWG stranded tinned copper conductors, foam high-density polyethylene (22 AWG) and PVC (20 AWG) insulation, twisted pairs, Individually foil shielded pairs with overall tinned copper braid shield (95% coverage) drain wire, PVC jacket.

Insulation

Element: Data Pair(s):-
• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.063 in (1.6 mm)

Element: Pair(s):
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.062 in (1.6 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.316 in (8.03 mm)
• Overall Cable Diameter (Nominal): 0.316 in (8.03 mm)

Standards:

• Operating Temperature: -20°C to +80°C
• Nom. Characteristic Impedance: 78 Ohms
• Voltage Rating: 300 V (CM), 30 V (AWM 2919)

Applications:

• IEEE 802.3 Transceiver Cable.

Specifications:

Element: Data Pair(s):-
• Size (AWG): 22
• No. of Pair: 3
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper

Element: Pair(s):
• Size (AWG): 20
• No. of Pair: 1
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper
• Part Number: 9891
