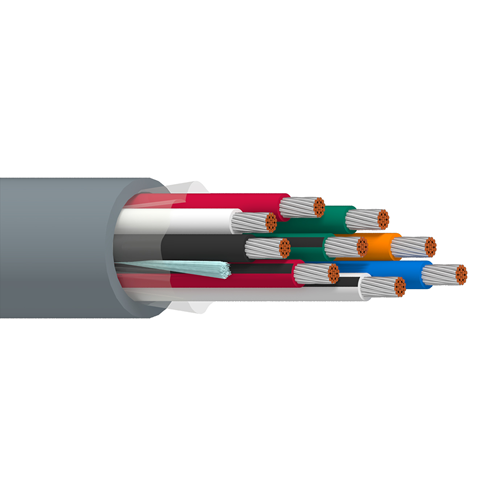

Belden 9621 16 AWG 9 Conductor 19x29 Stranding Tinned Copper 600V Electronic Cable

Description:

Electronic, 9 Conductor 16 AWG (19x29) Tinned Copper, PVC Insulation, PVC Outer Jacket.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.031 in (0.79 mm)
• Nom. Insulation Diameter: 0.121 in (3.07 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.045 in (1.1 mm)
• Nom. Diameter: 0.533 in (13.5 mm)
• Overall Cable Diameter (Nominal): 0.533 in (13.5 mm)

Standards:

• Voltage Rating: 600 V
• Operating Temperature: -20°C to +80°C

Applications:

• Analog Signals and Control (up to 600V); Line Level Audio; Voice Communications; Panel Wiring

Specifications:

• Size (AWG): 16
• No. of Conductor: 9
• Stranding: 19x29
• Conductor Material: TC - Tinned Copper
• Part Number: 9621
