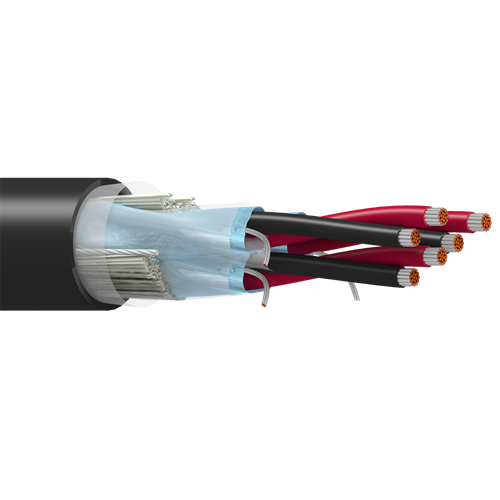

Belden 9369 18 AWG 3 Pair 19x30 Stranding 300V High Performance Instrumentation Cable

Description:

High Performance Instrumentation, 3 Pair 18 AWG (19x30) Tinned Copper, PVC Insulation E2 Color Code, Individual Beldfoil Shield, PVC Outer Jacket, PLTC.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.082 in (2.1 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (19x32) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.053 in (1.3 mm)
• Nom. Diameter: 0.456 in (11.6 mm)
• Overall Cable Diameter (Nominal): 0.456 in (11.6 mm)
• PP - Polypropylene Tape

Standards:

• Voltage Rating: 300 V (PLTC, CMG)
• Operating Temperature: -30°C to +105°C

Applications:

• Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

Specifications:

• Size (AWG): 18
• No. of Pair: 3
• Stranding: 19x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9369
