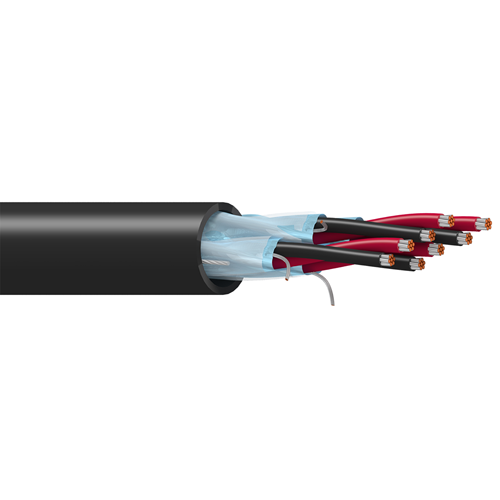

Belden 9330 22 AWG 4 Pair 7x30 Stranding 300V High Performance Instrumentation Cable

Description:

High Performance Instrumentation, 4 Pair 22 AWG (7x30) Tinned Copper, PVC Insulation E2 Color Code, Individual Beldfoil Shield, PVC Outer Jacket, PLTC.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.062 in (1.6 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.042 in (1.1 mm)
• Nom. Diameter: 0.372 in (9.45 mm)
• Overall Cable Diameter (Nominal): 0.372 in (9.45 mm)

Standards:

• Voltage Rating: 300 V (PLTC, CMG)
• Operating Temperature: -30°C to +105°C

Applications:

• Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

Specifications:

• Size (AWG): 22
• No. of Pair: 4
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9330
