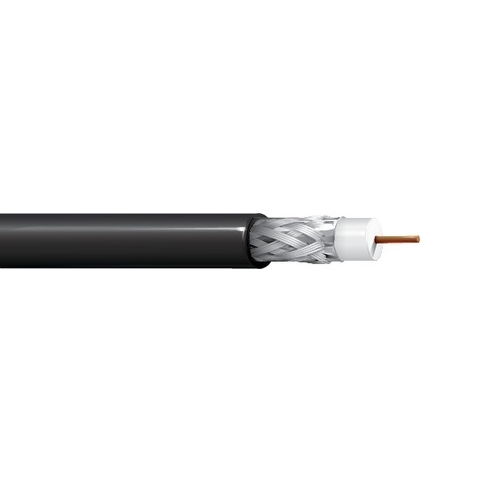

Belden 9275 20 AWG 1 Conductor Solid Bare Copper Covered Steel 300V Analog Video Coax Cable

Description:-

Analog Video, Series 59, 20 AWG solid 0.032" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duofoil or Duobond; aluminum braid shield (40% coverage), CM PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.144 in
• Gas Injected

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Aluminum
• Coverage: 40%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.237 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C To +80°C

Specifications:-

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 59
• Nominal Diameter: 0.032 in
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 9275
