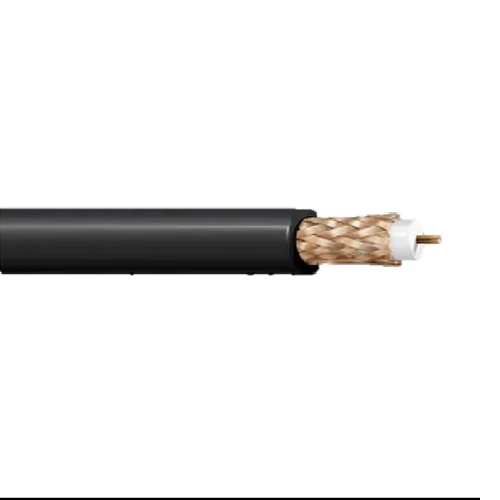

Belden 9258 16 AWG 1 Conductor 19x29 Stranding RG-8 Wireless Transmission 50 Ohm Coax Cable

Description:

50 Ohm Wireless Transmission Coax, RG-8X, 16 AWG (19x29) Bare Copper Conductor, PE Insulation, 95% Bare Copper Braid Shield, PVC Jacket, CM.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.155 in (3.94 mm)

Outer Shield:

• Outer Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.242 in (6.15 mm)
• Overall Cable Diameter (Nominal): 0.242 in (6.15 mm)

Applications:

• Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio
Frequency Identification)
