Belden 9203 20 AWG 1 Conductor 19x33 Stranding RG58 Tinned Copper 50 Ohm Coax Cable
Belden 9203 20 AWG 1 Conductor 19x33 Stranding RG58 Tinned Copper 50 Ohm Coax Cable
SKU: SKU: NES9203 Download PDF
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information

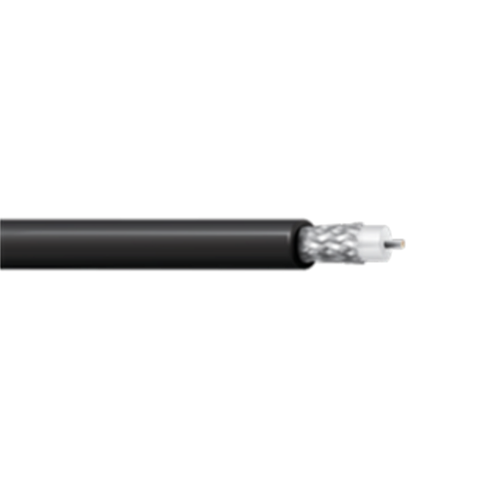

Belden 9203 20 AWG 1 Conductor 19x33 Stranding RG58 Tinned Copper 50 Ohm Coax Cable
Description:
RG-58/U, 20 AWG stranded (19x33) 0.035" tinned copper conductor, polyethylene insulation, tinned copper braid shield (95% coverage), non-contaminating
PVC jacket.
Insulation:
• Material: PE - Polyethylene
• Nominal Diameter: 0.116 in
Outer Shield:
• Outer Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%
Outer Jacket:
• Material: PVC - Polyvinyl Chloride (Non-Contaminating)
• Nom. Diameter: 0.195 in
Specifications:
• Size (AWG): 20
• Conductor Count: 1
• Stranding: 19x33
• RG Type: 58
• Impedance: 50 Ohm
• Nom. Diameter: 0.035 in
• Conductor Material: TC - Tinned Copper
• Part Number: 9203
• Size (AWG): 20
• Conductor Count: 1
• Stranding: 19x33
• RG Type: 58
• Impedance: 50 Ohm
• Nom. Diameter: 0.035 in
• Conductor Material: TC - Tinned Copper
• Part Number: 9203
