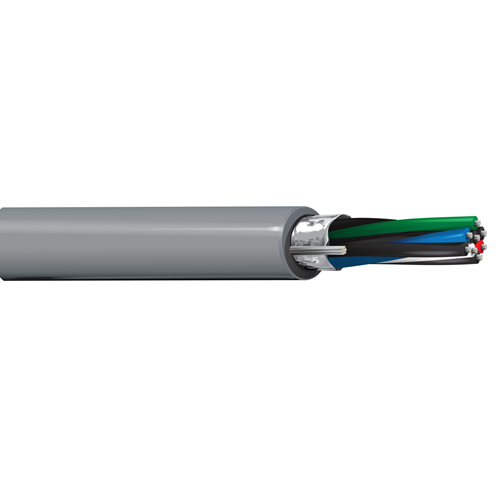

Belden 89504 24 AWG 4 Pair 7x32 Stranding Tinned Copper 300V Computer EIA RS-232 Cable

Description:

Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, FEP insulation, 4 twisted pair, overall Beldfoil shield (100% coverage), 24 AWG stranded tinned copper drain wire, FEP jacket.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.006 in (0.15 mm)
• Nom. Insulation Diameter: 0.036 in (0.91 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.194 in (4.93 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -70°C To +150°C

Applications:

• extreme high/low temperature environments; rs-232 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Specifications:

• Size (AWG): 24
• No. of Pair: 4
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 89504
