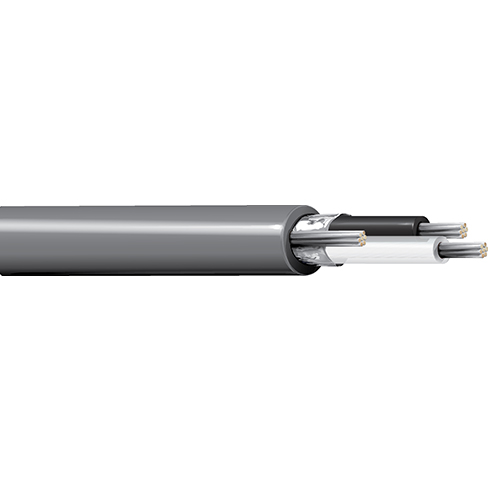

Belden 8770ZH 18 AWG 3 Conductor 16x30 Stranding Tinned Copper 300V Electronic Cable

Description:-

Electronic, 3 Conductor 18 AWG (16x30) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, LSZH Outer Jacket, CMG.

Insulation:-

• Material: PE - Polyethylene
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Insulation Diameter:  0.082 in (2.1 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Diameter: 0.246 in
• Overall Cable Diameter (Nominal): 0.246 in

Standards:-

• UL Voltage Rating: 300 V
• Nominal Characteristic Impedance: 69 Ohms
• Operating Temperature Range: -20°C To +75°C

Specifications:-

• Size (AWG): 18
• No. of Conductor: 3
• Stranding: 16x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8770ZH
