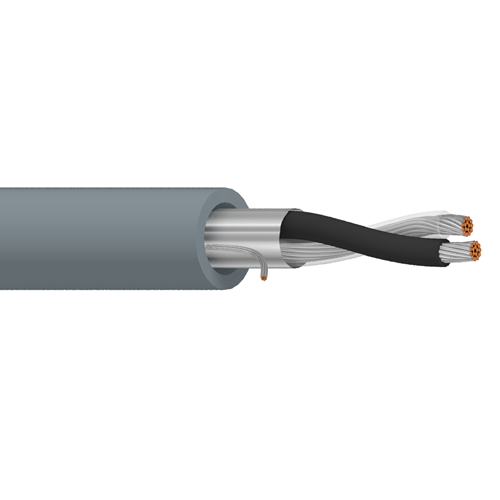

Belden 8760MN 18 AWG 2 Conductor 41x34 Stranding Tinned Copper 300V SpaceMaker Cable

Description:

SpaceMaker, 2 Conductor 18 AWG (41x34) Tinned Copper, PE Insulation, Overall Beldfoil Shield, PVC Outer Jacket, AWM 2937.

Insulation:

• Element: Pair(s)
• Material: PP - Polypropylene
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.067 in (1.7 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (19x32) TC

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Diameter: 0.169 in (4.29 mm)
• Overall Cable Diameter (Nominal): 0.169 in (4.29 mm)

Standards:

• Voltage Rating: 300 V (UL AWM 2937).
• Operating Temperature: -30°C to +80°C.

Applications:

• Connect machines and devices in space-constrained settings, low-voltage analog signals (4-20ma, 0-10v, ...), low-voltage digital control (24v, …), in-level audio, computer communication, panel wiring

Specifications:

• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 41x34
• Conductor Material: TC - Tinned Copper
• Part Number: 8760MN
