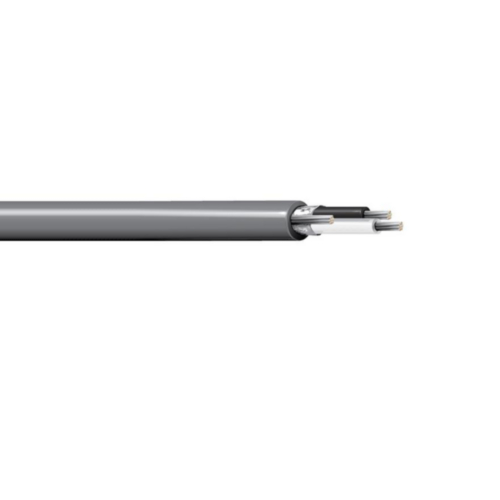

Belden 8719NH 16 AWG 1 Conductor 19x29 Stranding Tinned Copper 300V Electronic Cable

Description:-

Electronic, 2 Conductor 16 AWG (19x29) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, LSZH Outer Jacket, CPR Dca.

Insulation:-

• Material: PE - Polyethylene
• Nom. Thickness: 0.7 mm (0.028 in)
• Nom. Insulation Diameter: 0.122 in (3.10 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 18 AWG (16x30) TC - Tinned Copper

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.89 mm (0.035 in)
• Nom. Diameter: 8.10 mm (0.319 in)
• Overall Cable Diameter (Nominal): 8.10 mm (0.319 in)

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -45°C To +80°C

Applications:-

• Analog signals and digital control ; line level audio; voice communications; panel wiring

Specifications:-

• Size (AWG): 16
• No. of Conductor: 1
• Stranding: 19x29
• Conductor Material: TC - Tinned Copper
• Part Number: 8719NH
