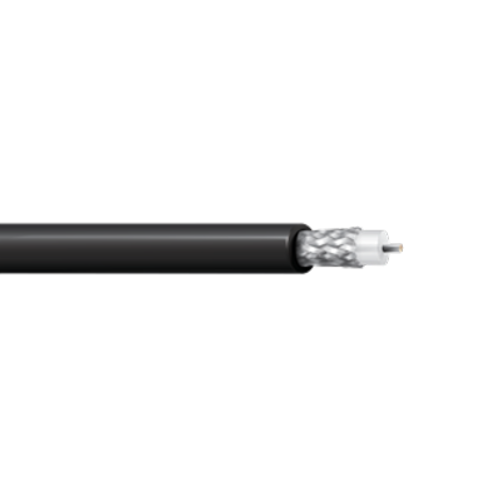

Belden 84316 26 AWG 1 Conductor 7x34 Stranding RG-316 Mil-Spec Coax 50 Ohm Coax Cable

Description:

Mil-Spec Coax, 50 Ohm, RG-316, 26 AWG (7x34) Silvered Copper Covered Steel Conductor, PTFE Insulation, 95% Silvered Copper Braid Shield, FEP Jacket, Commercial, non-QPL.

Insulation:

• Material: PTFE - Polytetrafluoroethylene
• Nom. Insulation Diameter: 0.060 in (1.5 mm)

Outer Shield:

• Layer 1: Outer Shield Type Braid, Silvered Copper (SC), Coverage 95%

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.098 in (2.5 mm)
• Overall Cable Diameter (Nominal): 0.098 in (2.5 mm)

Applications:

• Aerospace wireless communication
