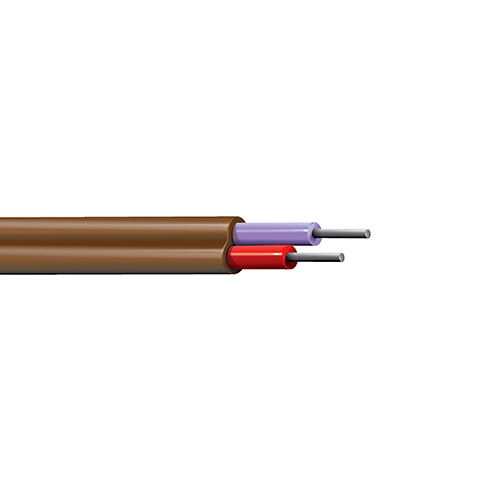

Belden 83900 20 AWG 1 Pair Solid Iron and Constantan 300V Type J Thermocouple PLTC Cable

Description:

Type J Thermocouple, 1 Pair 20 AWG (Solid) Iron+Constantan, FEP Insulation Wht, Red Color Code, Brown FEP Outer Jacket, CL3P 200C PLTC SUN RES.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom. Insulation Diameter: 0.052 in (1.3 mm)

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.012 in (0.30 mm)
• Nom. Diameter: 0.128 in (3.25 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -70°C To +200°C

Applications:

• Industrial Control, Raceways, Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...), low voltage digital control (24v, …), encoders, control circuits, distributed control
