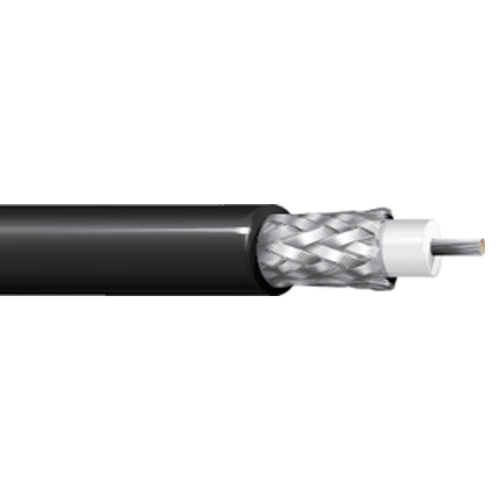

Belden 83269 26 AWG 1 Conductor 7x34 Stranding RG-188 Mil-Spec 50 Ohm Coax Cable

Description:

Mil-Spec Coax, 50 Ohm, RG-188, 26 AWG (7x34) Silvered Copper Covered Steel Conductor, PTFE Insulation, 95% Silvered Copper Braid Shield, PTFE Tape Jacket, Commercial, non-QPL.

Insulation:

• Material: PTFE - Polytetrafluoroethylene
• Nom. Insulation Diameter: 0.058 in (1.5 mm)

Outer Shield:

• Layer 1: Outer Shield Type Braid, Silvered Copper (SC) Material, Coverage 95%

Outer Jacket:

• Material: PTFE - Polytetrafluoroethylene
• Nom. Diameter: 0.100 in (2.54 mm)
• Overall Cable Diameter (Nominal): 0.100 in (2.54 mm)

Applications:

• Aerospace wireless communication
