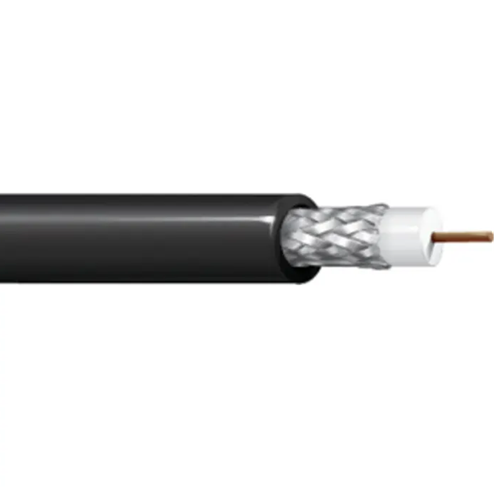

Belden 83267 30 AWG 1 Conductor 7x38 Stranding RG-187 75 Ohm Coax Cable
Belden 83267 30 AWG 1 Conductor 7x38 Stranding RG-187 75 Ohm Coax Cable
SKU: SKU: NES83267 Download PDF
Select a gauge:
- Belden 83267 30 AWG 1 Conductor 7x38 Stranding RG-187 75 Ohm Coax Cable
- Belden 83267 30 AWG 1 Conductor 7x38 Stranding RG-187 75 Ohm Coax Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 83267 30 AWG 1 Conductor 7x38 Stranding RG-187 75 Ohm Coax Cable
Description:
75 ohm, 30 AWG stranded (7x38) 0.012" silver-plated copper-covered steel conductor, TFE Teflon insulation, silver-plated copper braid shield (95% coverage), TFE tape jacket.
Insulation:
• Material: PTFE - Polytetrafluoroethylene
• Material Trade Name: Teflon
• Nominal Diameter: 0.063 in
Outer Shield:
• Outer Shield Type: Braid
• Material: Silvered Copper (SC)
• Coverage: 95%
Outer Jacket:
• Material: PTFE - Polytetrafluoroethylene
• Material Trade Name: Teflon
• Nom. Diameter: 0.105 in
Specifications:
• Size (AWG): 30
• Conductor Count: 1
• Stranding: 7x38
• Nom. Diameter: 0.012 in
• Impedance: 75 Ohm
• RG Type: 187
• Conductor Material: SCCS - Silvered Copper Covered Steel
• Part Number: 83267
• Size (AWG): 30
• Conductor Count: 1
• Stranding: 7x38
• Nom. Diameter: 0.012 in
• Impedance: 75 Ohm
• RG Type: 187
• Conductor Material: SCCS - Silvered Copper Covered Steel
• Part Number: 83267
