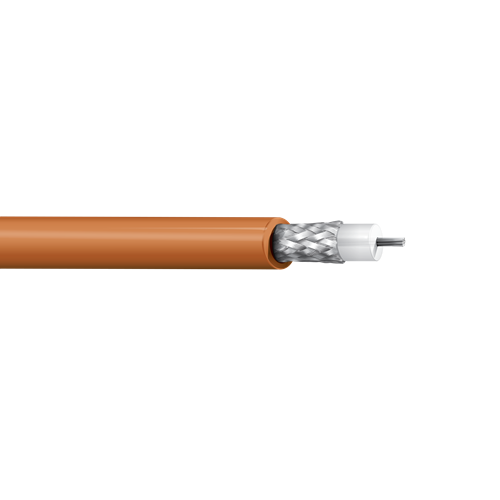

Belden 83264 30 AWG 1 Conductor 7x38 Stranding Silvered Copper Covered Steel 900V Mil-Spec Coax Cable

Description:-

Mil-Spec Coax, 75 Ohm, RG-179, 30 AWG (7x38) Silvered Copper Covered Steel Conductor, PTFE Insulation, 95% Silvered Copper Braid Shield, FEP Jacket, Commercial, non-QPL

Insulation:-

• Material: PTFE - Polytetrafluoroethylene
• Nom. Insulation Diameter: 0.063 in (1.6 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Braid
• Material: Silvered Copper (SC)
• Coverage: 95%

Outer Jacket:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.100 in (2.54 mm)
• Overall Cable Diameter (Nominal): 0.100 in (2.54 mm)

Standards:-

• UL Voltage Rating: 900 V (Mil-Spec)
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -70°C to +200°C

Applications:-

• Aerospace, analog video

Specifications:-

• Size (AWG): 30
• No. of Conductor: 1
• Stranding: 7x38
• RG Type: 179
• Nominal Diameter: 0.012 in
• Conductor Material: SCCS - Silvered Copper Covered Steel
• Part Number: 83264
