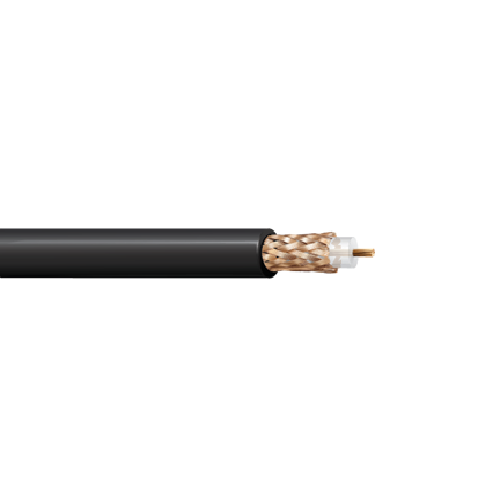

Belden 8267 13 AWG 1 Conductor 7x21 Stranding RG-213 Mil-Spec 50 Ohm Coax Cable

Description:

Mil-Spec Coax, 50 Ohm, RG-213, 13 AWG (7x21) Bare Copper Conductor, PE Insulation, 95% Bare Copper Braid Shield, PVC Jacket (Non-Contaminating), CMX, Commercial, non-QPL.

Insulation:

• Material: PE - Polyethylene
• Nom. Insulation Diameter: 0.285 in (7.24 mm)

Outer Shield:

• Outer Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride (Non-Contaminating)
• Nom. Diameter: 0.405 in (10.3 mm)
• Overall Cable Diameter (Nominal): 0.405 in (10.3 mm)

Applications:

• Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)
