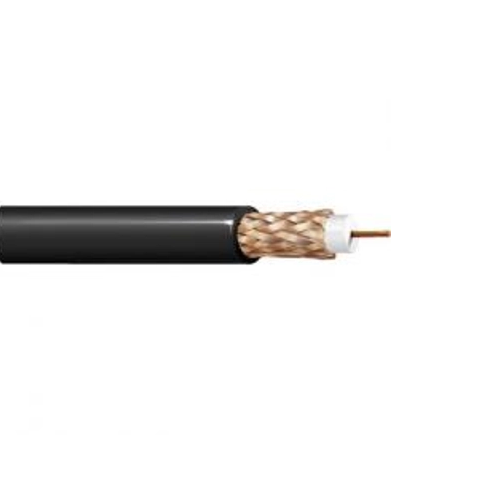

Belden 8241B 23 AWG 1 Conductor Solid Bare Copper 300V Analog Video Coax Cable

Description:-

23 AWG solid 0.023" bare copper conductor, polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket.

Insulation:-

• Material: PE - Polyethylene
• Nominal Diameter: 0.146 in

Outer Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.242 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -20°C To +80°C

Specifications:-

• Size (AWG): 23
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 59
• Nominal Diameter: 0.023 in
• Conductor Material: BC - Bare Copper
• Part Number: 8241B
