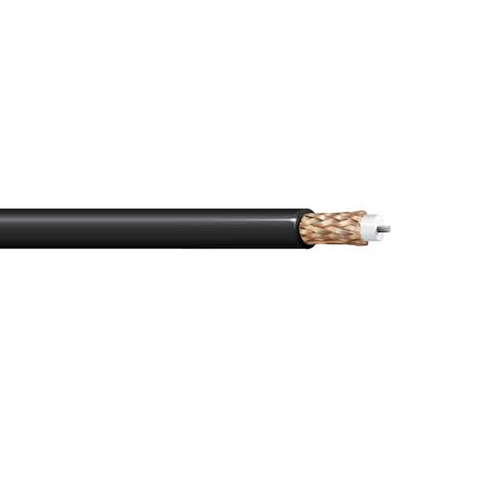

Belden 8238 18 AWG 1 Conductor 7x26 Stranding Tinned Copper 300V Coax Cable

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Belden 8238 18 AWG 1 Conductor 7x26 Stranding Tinned Copper 300V Coax Cable

Description:-

18 AWG stranded (7x26) 0.048" tinned copper conductor, flame-retardant semi-foam polyethylene insulation, bare copper braid shield (97% coverage), PVC jacket.

Insulation:-

• Material: FR Semi-Foam PE - Flame Retardant Semi-Foam Polyethylene
• Dia. (in.): 0.285

Outer Shield:-

• Layer: 1
• Shield Type: Braid
• Material: BC - Bare Copper
• Coverage: 97%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Overall Cable Diameter (Nominal): 0.405 in.

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C To +80°C

Specifications:-

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: 7x26
• Nominal Diameter: 0.048
• Conductor Material: TC - Tinned Copper
• Part Number: 8238
