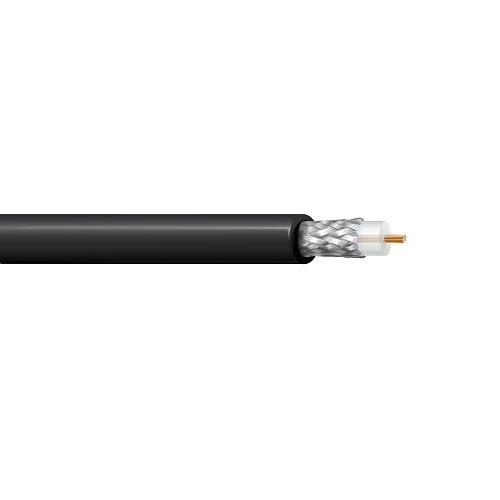

Belden 8216 26 AWG 1 Conductor 7x34 Stranding RG-174 Wireless Transmission 50 Ohm Coax Cable

Description:

50 Ohm Wireless Transmission Coax, RG-174, 26 AWG (7x34) Bare Copper Covered Steel Conductor , PE Insulation, 90% Tinned Copper Braid Shield, PVC Jacket.

Insulation:

• Material: PE - Polyethylene
• Nom. Insulation Diameter: 0.060 in (1.5 mm)

Outer Shield:

• Outer Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 90%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.110 in (2.79 mm)
• Overall Cable Diameter (Nominal): 0.110 in (2.79 mm)

Applications:

• Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)
