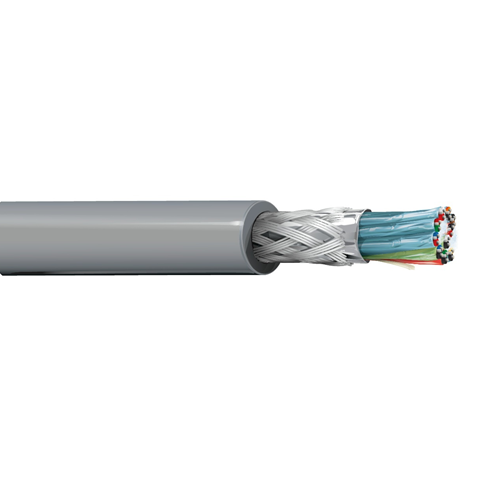

Belden 8170 24 AWG 10 Pair 7x32 Stranding Tinned Copper 300V Computer EIA RS-232/422 Cable

Description:

Computer EIA RS-232/422, Digital Audio Cable, 24 AWG stranded (7x32) tinned copper conductors, Datalene insulation, 10 twisted pairs individually Beldfoil shielded + overall 100% Beldfoil + tinned copper braid shield (65% coverage), drain wire, PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.061 in (1.5 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.063 in (1.6 mm)
• Nom. Diameter: 0.584 in (14.8 mm)
• Overall Cable Diameter (Nominal): 0.584 in (14.8 mm)

Standards:

• Operating Temperature: -40°C to +60°C
• Nom. Characteristic Impedance: 100 Ohms
• Voltage Rating: 300 V (CM), 300 V (UL AWM 2493)

Applications:

• RS-232 Extended Distance and RS-422 Applications; Computer Communications; Low Voltage Analog signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Digital Audio; Panel Wiring

Specifications:

• Size (AWG): 24
• No. of Pair: 10
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 8170
