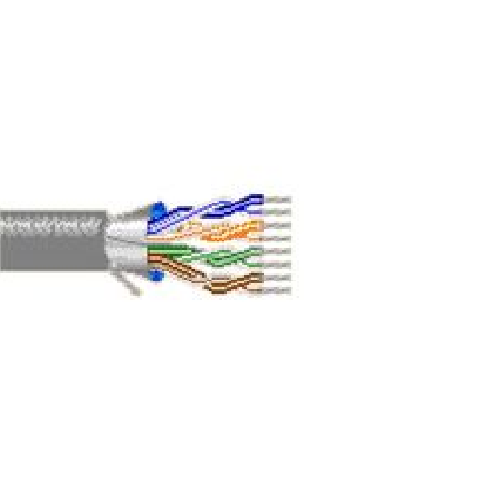

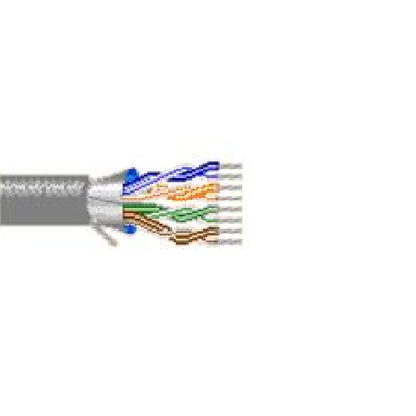

Belden 7839A 22 AWG 6 Pair Solid Tinned Copper 300V T1/DS1 Central Office Cable

Description:-

22 AWG solid tinned copper conductors, 6 twisted pairs, flame-retardant polyolefin insulation, overall Beldfoil shield (100% coverage), 22 AWG solid tinned copper drain wire, PVC jacket.

Insulation:-

• Material: PO - Polyolefin

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.38 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 100 Ohm
• Operating Temperature Range: -20°C To +75°C

Specifications:-

• Size (AWG): 22
• No. of Pairs: 6
• Stranding: Solid
• Conductor Material: TC - Tinned Copper
• Part Number: 7839A
