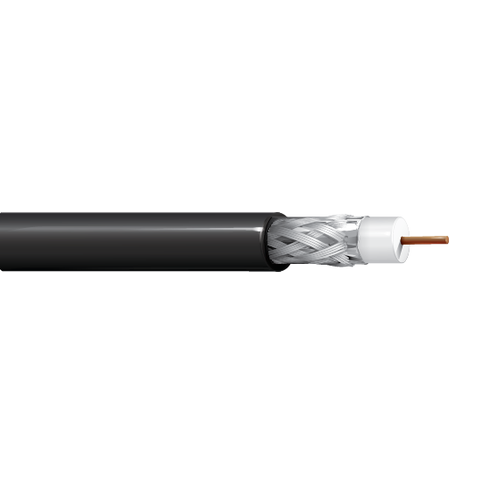

Belden 7809R 13 AWG 1 Conductor Solid Bare Copper 300V Wireless Transmission Coax Cable

Description:-

50 Ohm Wireless Transmission Coax, RF 300, 13 AWG Solid Bare Copper Conductor, PE Insulation, Duobond Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.19 in (4.8 mm)
• Gas Injected

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

• Splicing Tape

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.3 in (7.6 mm)
• Overall Nominal Diameter: 0.3 in (7.6 mm)

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 50 Ohm
• Operating Temperature Range: -40°C To +75°C

Applications:-

• Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

Specifications:-

• Size (AWG): 13
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.072 in
• Conductor Material: BC - Bare Copper
• Part Number: 7809R
