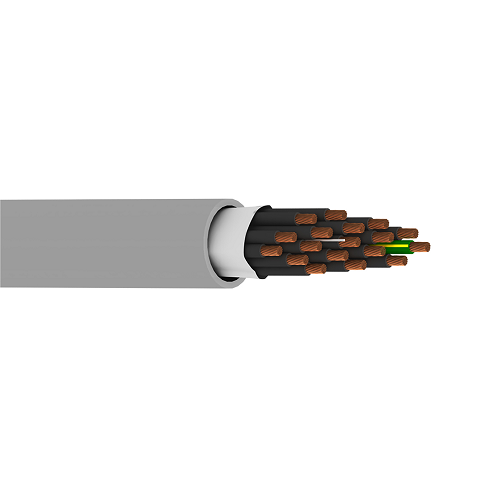

Belden 7428W 16 AWG 17 Conductor 1 Ground Wire 26x30 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 17+1G Conductor 16 AWG (26x30) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER.

Insulation:-

Element: Conductor(s)
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.101 in (2.57 mm)

Element: Ground Wire
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.101 in (2.57 mm)

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Diameter: 0.636 in
• Nominal Wall Thickness: 0.063 in

Standards:-

• Voltage Rating: 1000 V RMS, 600 V RMS
• Operating Temperature Range: Flexing: -5°C To +90 °C

Specifications:-

Element: Conductor(s)
• Size (AWG): 16
• No. of Conductor: 17
• Stranding: 26x30
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 16
• No. of Ground Wire: 1
• Stranding: 26x30
• Conductor Material: BC - Bare Copper
• Part Number: 7428W
