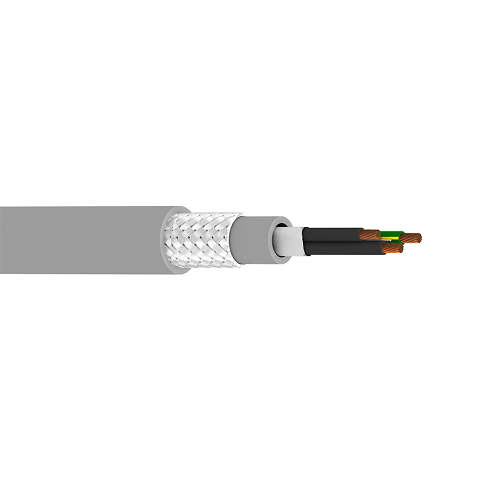

Belden 7422WS 16 AWG 2 Conductor 1 Ground Wire 26x30 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 2+1G Conductor 16 AWG (26x30) Bare Copper, PVC-NYL Insulation, Overall Tinned Copper Braid (85%) Shield, TPE Inner Jacket, TPE Outer Jacket, 1000V WTTC, 600V TC-ER.

Insulation:-

Element: Conductor(s)
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Insulation Diameter: 0.101 in (2.57 mm)

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage [%]: 85%

Inner Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.272 in (6.91 mm)

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.047 in (1.2 mm)
• Nom. Diameter: 0.394 in

Standards:-

• Voltage Rating: 600V

Applications:-

• Robotics, Robot, Continuous Flex

Specifications:-

Element: Conductor(s)
• Size (AWG): 16
• No. of Conductor: 2
• Stranding: 26x30
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 16
• No. of Ground Wire: 1
• Stranding: 26x30
• Conductor Material: BC - Bare Copper
• Part Number: 7422WS
