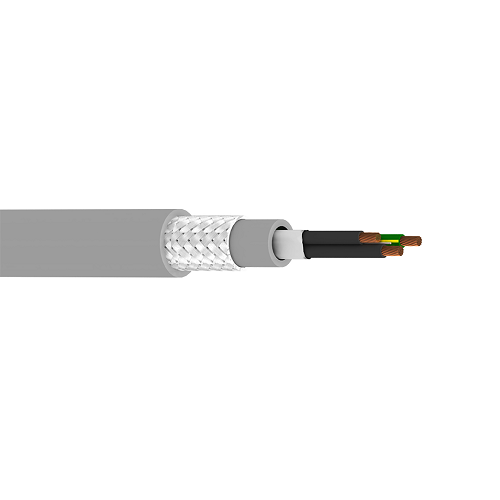

Belden 7410WS 18 AWG 2 Conductor 1 Ground Wire 16x30 Stranding 600V Flex Cable

Description:-

MachFlex for High Flex, 2+1G Conductor 18 AWG (16x30) Bare Copper, PVC-NYL Insulation, Overall Tinned Copper Braid (85%) Shield, TPE Outer Jacket, 1000V WTTC, 600V TC-ER.

Insulation:-

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Insulation Diameter: 0.089 in (2.3 mm)

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage [%]: 85%

Inner Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.025 in (0.64 mm)

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.047 in (1.2 mm)
• Nom. Diameter: 0.367 in

Standards:-

• Voltage Rating: 1000 V RMS, 600 V RMS

Specifications:-

Element: Conductor(s)
• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 16x30
• Conductor Material: BC - Bare Copper

Element: Ground Wire
• Size (AWG): 18
• No. of Ground Wire: 1
• Stranding: 16x30
• Conductor Material: BC - Bare Copper
• Part Number: 7410WS
