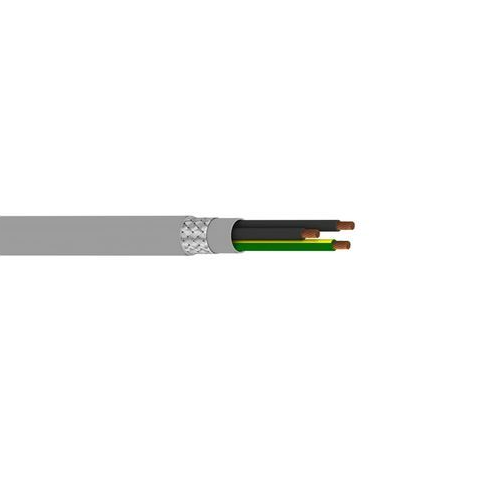

Belden 73603WS 16 AWG 3 Conductor 26x30 Stranding Bare Copper 600V Multi-Conductor Cable

Description:

MachFlex for Moderate Flex, 3 Conductor 16 AWG (26x30) Bare Copper, PVC Insulation, Overall Tinned Copper Braid (85%) Shield, PVC Inner Jacket, PVC Outer Jacket, AWM 2587 CLASS K

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.104 in (2.64 mm)

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage:  85%

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.030 in (0.76 mm)
• Nom. Diameter:  0.290 in (7.37 mm)
• Separator: Paper Tape

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.388 in
• Overall Cable Diameter (Nominal): 0.388 in (9.86 mm)
• Separator: Paper Tape

Standards:

• Voltage Rating: 600 V (CSA AWM I/II A/B), 600 V (AWM 2587)
• Operating Temperature: -40°C To 90°C (Static), -5°C To 90°C (Flexing)

Applications:

• Robotics, Robot, Continuous Flex

Specifications:

• Size (AWG): 16
• No. of Conductor: 3
• Stranding: 26x30
• Conductor Material: BC - Bare Copper
• Part Number: 73603WS
