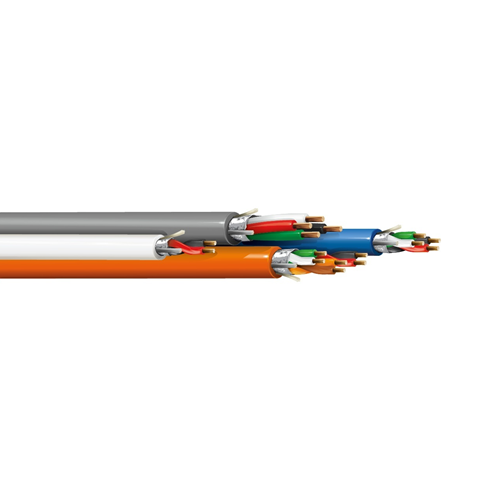

Belden 658AFS 22 AWG 7x30 Stranding 18 AWG 7x26 Stranding Bare Copper 300V Access Control Cable

Description:

Access Control Cable, Plenum-CMP, 3-22 AWG pairs, 4-18 AWG conductors, 4-22 AWG conductors, 2-22 AWG conductors, All conductors stranded bare copper with Flamarrest insulation, Each cable has overall Beldfoil shield and Flamarrest jacket, Banana Peel No overall jacket.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm), 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.047 in (1.2 mm), 0.066 in (1.7 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.216 in (5.49 mm), 0.128 in (3.25 mm), 0.193 in (4.90 mm)

Outer Jacket:

• Material: No Jacket
• Nom. Diameter: 0.420 in (10.7 mm)
• Outer Jacket1 Table Notes: Banana Peel
• Overall Cable Diameter (Nominal): 0.420 in (10.7 mm)

Standards:

• Voltage Rating: 300 V (CMP)
• Operating Temperature: 0°C to +75°C

Applications:

• Access Control, Security System, Power Limited Controls

Specifications:

Card Reader
• Size (AWG): 22
• No. of Pair: 3
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

Door Contact
• Size (AWG): 22
• No. of Conductor: 2
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

REX/Spare
• Size (AWG): 22
• No. of Conductor: 4
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

Lock Power
• Size (AWG): 18
• No. of Conductor: 4
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 658AFS
