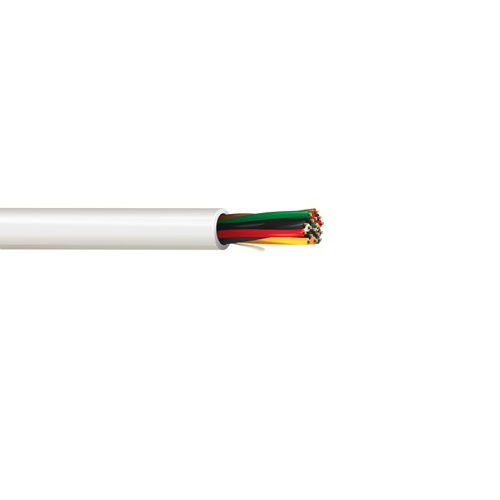

Belden 6547UE 22 AWG 18 Conductor 7x30 Stranding Bare Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Plenum-CMP 9-22 AWG stranded bare copper pairs with Flamarrest insulation, Flamarrest jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Diameter: 0.318 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: 0°C to +75°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Specifications:

• Size (AWG): 22
• No. of Conductor: 18
• Stranding: 7x30
• Conductor Material: BC - Bare Copper
• Part Number: 6547UE
