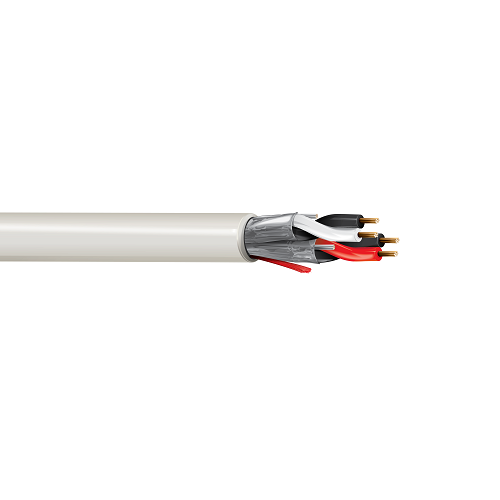

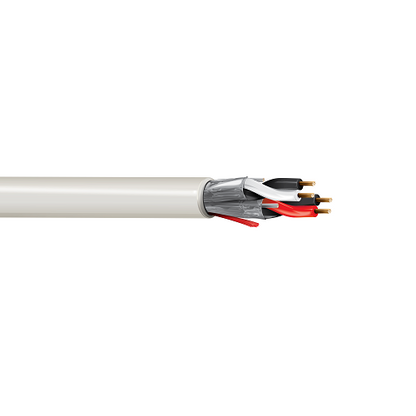

Belden 6542PA 22 AWG 3 Pair 7x30 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Security, Pro Audio and Intercom Cable, 3 Pair 22 AWG stranded (7x30) bare copper pairs with FEP insulation, Individually Beldfoil shielded and PVDF jacket with ripcord, Plenum rated.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.049 in (1.2 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:-

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.228 in
• Overall Cable Diameter (Nominal): 0.228 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -15°C to +150°C

Applications:-

• Security, Audio, Intercom

Specifications:-

• Size (AWG): 22
• No. of Pairs: 3
• Stranding: 7x30
• Conductor Material: BC - Bare Copper
• Part Number: 6542PA
