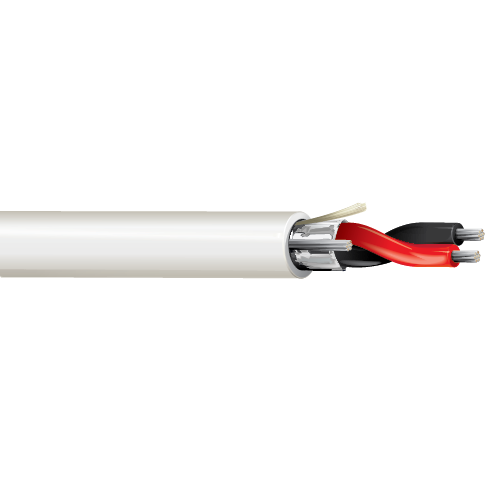

Belden 6500FH 22 AWG 2 Conductor 7x30 Stranding Tinned Copper 300V Security and Commercial Audio Cable

Description:

Security and Commercial Audio Cable, Plenum-CMP, 2-22 AWG stranded tinned copper conductors with Flamarrest insulation, Beldfoil shield, and Flamarrest jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.0095 in (0.24 mm)
• Nom. Insulation Diameter: 0.048 in (1.2 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.130 in
• Overall Cable Diameter (Nominal): 0.130 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +75°C

Applications:

• Intercom/PA Systems and Sound/Audio Systems

Specifications:

• Size (AWG): 22
• No. of Conductor: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 6500FH
