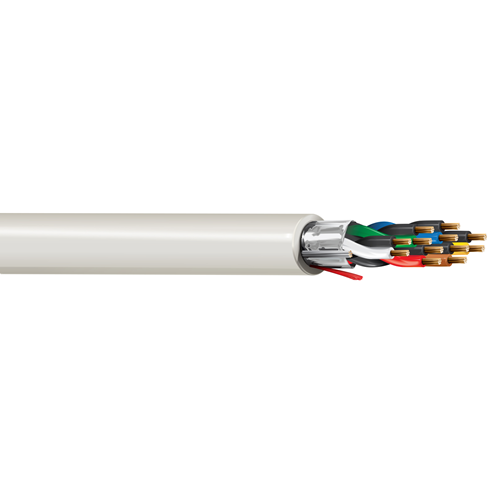

Belden 6345FE 18 AWG 12 Conductor 7x26 Stranding Bare Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Plenum-CMP, 6-18 AWG stranded bare copper pairs with Flamarrest insulation, Beldfoil shield, and Flamarrest jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.063 in (1.6 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.357 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: 0°C to +75°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Specifications:

• Size (AWG): 18
• No. of Conductor: 12
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 6345FE
