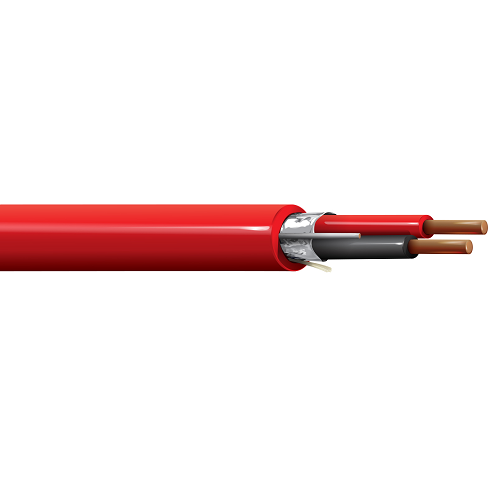

Belden 6220FK 16 AWG 2 Conductor Solid Bare Copper 300V Fire Alarm Cable

Description:-

Fire Alarm Cable, Plenum-FPLP, 2-16 AWG solid bare copper conductors with FEP insulation, overall Beldfoil shield, Flamarrest jacket with ripcord.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Insulation Diameter: 0.088 in (2.2 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.21 in
• Overall Cable Diameter (Nominal): 0.21 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: 0°C to +75°C

Applications:-

• Fire Alarm, Addressable Systems, Circuits: Audio, Control, Initiating, Notification

Specifications:-

• Size (AWG): 16
• No. of Conductor: 2
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 6220FK
