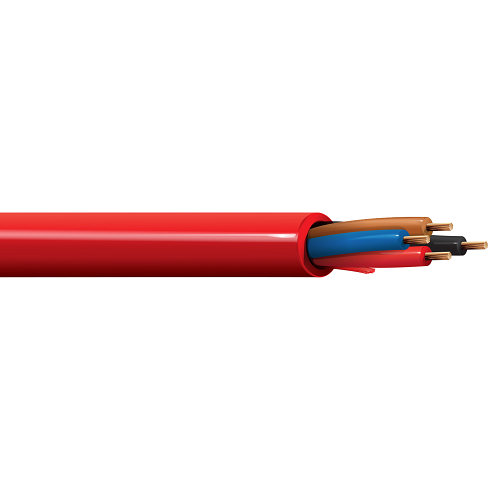

Belden 6102UL 14 AWG 4 Conductor 19x26 Stranding Bare Copper 300V Fire Alarm Cable

Description:-

Fire Alarm Cable, Plenum-FPLP, 4-14 AWG stranded bare copper conductors with Flamarrest insulation, Flamarrest jacket with ripcord.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.012 in (0.30 mm)
• Nom. Insulation Diameter: 0.094 in (2.4 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.272 in (6.91 mm)

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: 0°C to +75°C

Applications:-

• Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification

Specifications:-

• Size (AWG): 14
• No. of Conductor: 4
• Stranding: 19x26
• Conductor Material: BC - Bare Copper
• Part Number: 6102UL
