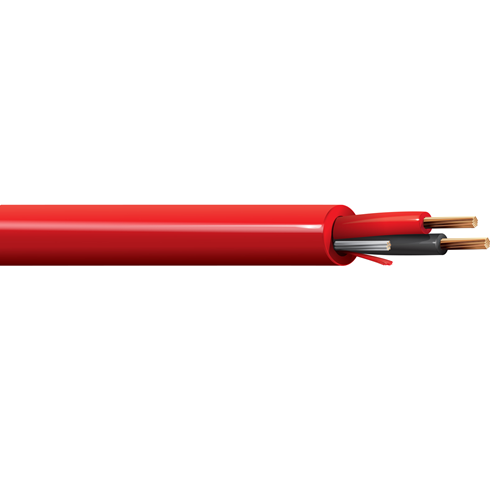

Belden 6100UL 14 AWG 2 Conductor 19x26 Stranding Bare Copper 300V Fire Alarm Cable

Description:

Fire Alarm Cable, Plenum-FPLP, 2-14 AWG stranded bare copper conductors with Flamarrest insulation, Flamarrest jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.012 in (0.30 mm)
• Nom. Insulation Diameter: 0.094 in (2.4 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.214 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: 0°C To +75°C

Applications:

• Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification.

Specifications:

• Size (AWG): 14
• No. of Conductor: 2
• Stranding: 19x26
• Conductor Material: BC - Bare Copper
• Part Number: 6100UL
