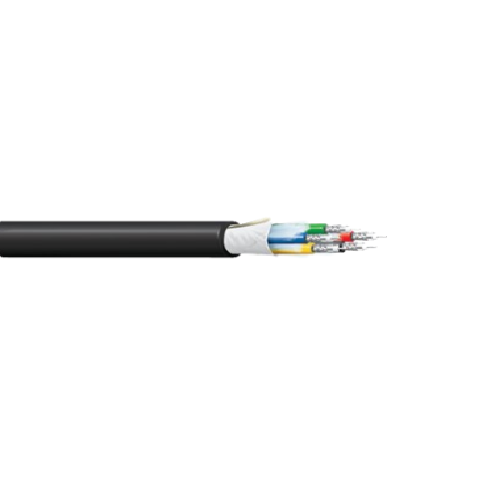

Belden 5788AV 25 AWG 6 Coax 22 AWG 2 Pair Tinned Copper 300V Audio and Video Composite Cable

Description:

6 Coax - 25 AWG solid tinned copper conductors, gas-injected FHDPE insulation, Duobond shield plus an interlocked serve shield, PVC jacket. 2 pairs - 22 AWG stranded (7x30) tinned copper conductors, PVC insulation, Beldfoil shield, drain wire, PVC jacket.

Insulation:

• Material: Gas-injected FHDPE - Foam High Density Polyethylene
• Dia. (in.): 0.074

Inner Shield:

• Layer: 1
• Shield Type: Tape
• Material: Aluminum Foil-Polyester Tape-Bonded Aluminum Foil
• Inner Shield Trade Name: Duobond
• Coverage: 100%

• Layer: 2
• Shield Type: Interlocked Serve
• Material: TC - Tinned Copper
• Coverage: 95%

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.114 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: 0°C To +75°C
• Nom. Characteristic Impedance: 75 Ohm

Applications:

• Projection Video, Projectors, Classroom, Room-to-Room AV, RGB, VGA, SVGA, XGA, SXGA, USGA, HDTVm LCD, Plasma, Component Video, Video Mult., Composite Audio Video, Hybrid Component, Animation, Special Effects, RGB62, TGB6C/22-2P, High Resolution, HR + STP 22-175

Specifications:

• Size (AWG): 25
• No. of Coax: 6
• Stranding: Solid
• Nom. Diameter: 0.018 in
• Conductor Material: TC - Tinned Copper

• Size (AWG): 22
• No. of Pair: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 5788AV
