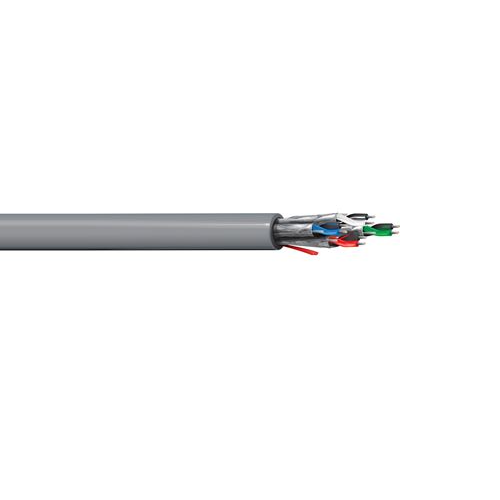

Belden 5543PE 22 AWG 4 Pair 7x30 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Riser-CMR, 4-22 AWG stranded bare copper pairs with PVC insulation, individually Beldfoil shielded, and PVC jacket with ripcord

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.002 in (0.051 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Diameter: 0.303 in
• Overall Cable Diameter (Nominal): 0.303 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C to +75°C

Applications:-

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Specifications:-

• Size (AWG): 22
• No. of Pair: 4
• Stranding: 7x30
• Conductor Material: BC - Bare Copper
• Part Number: 5543PE
